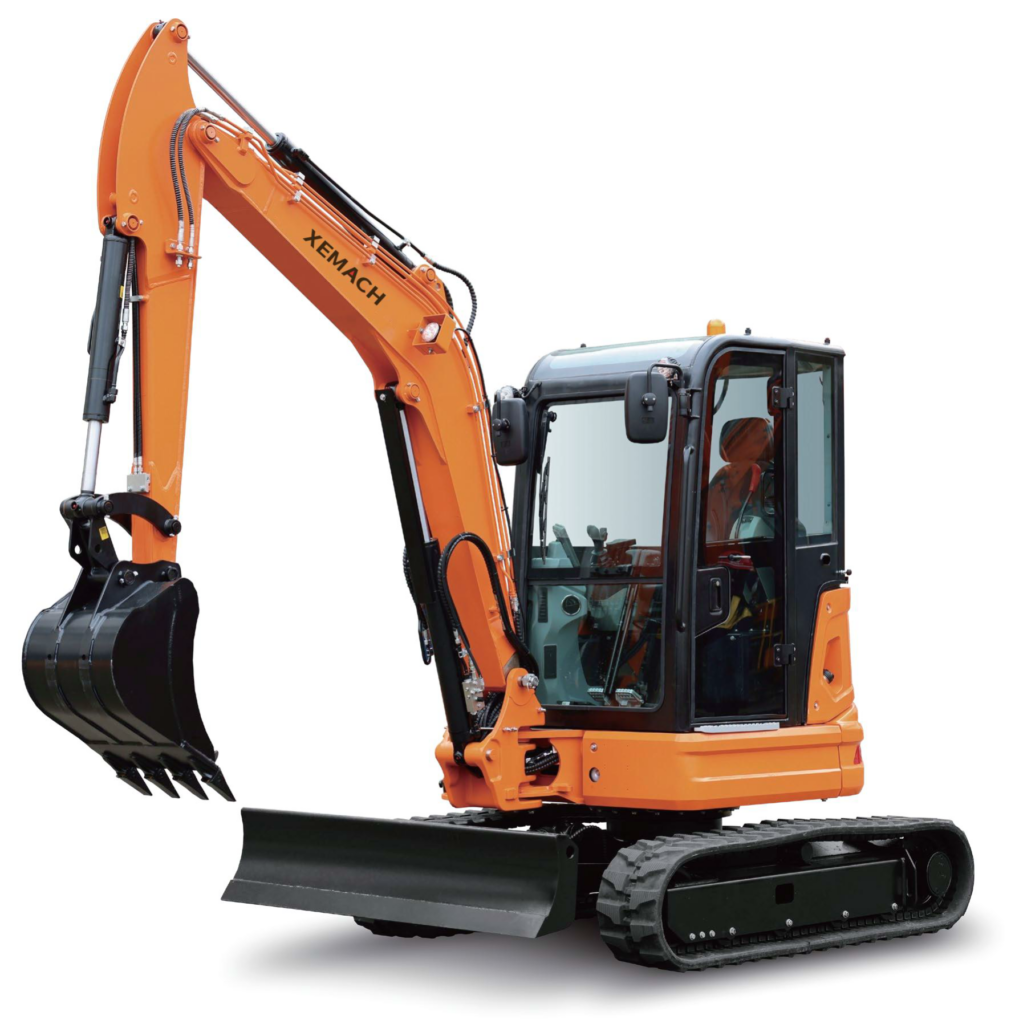

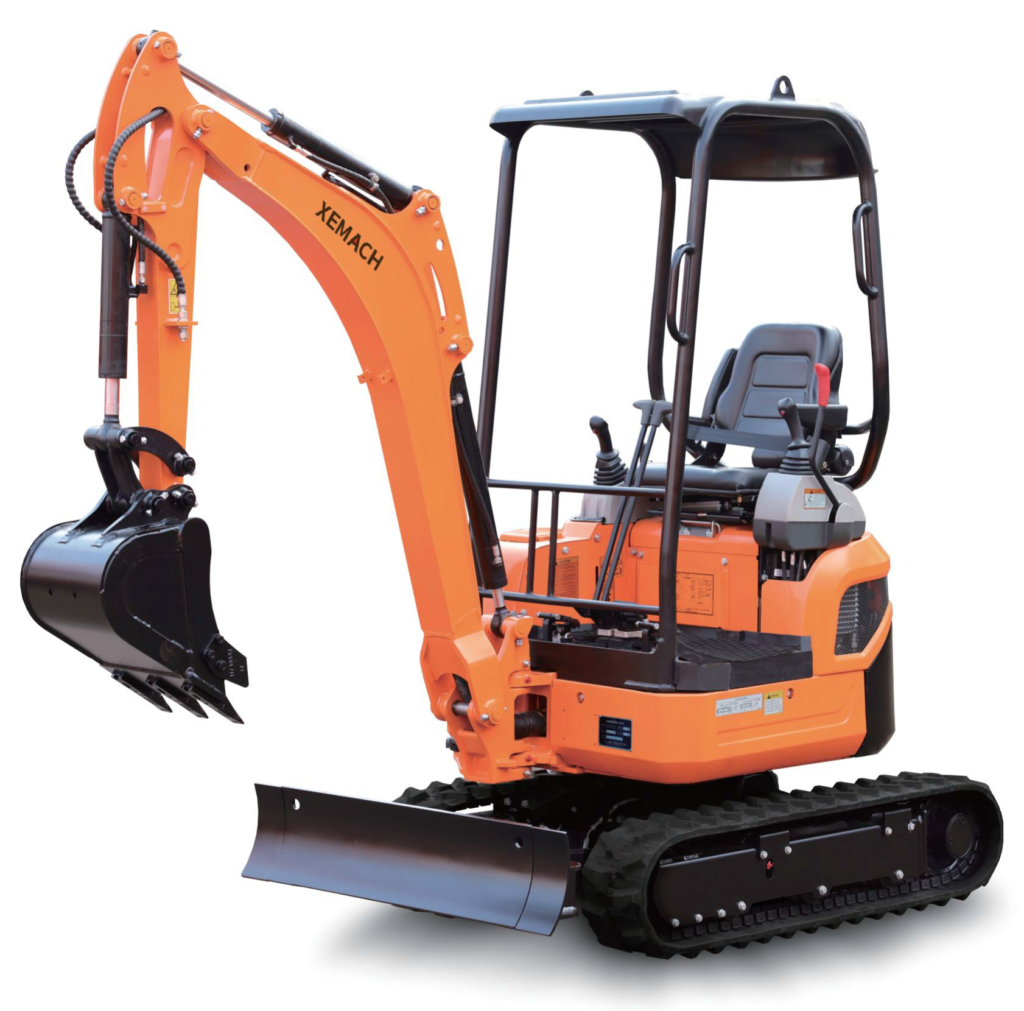

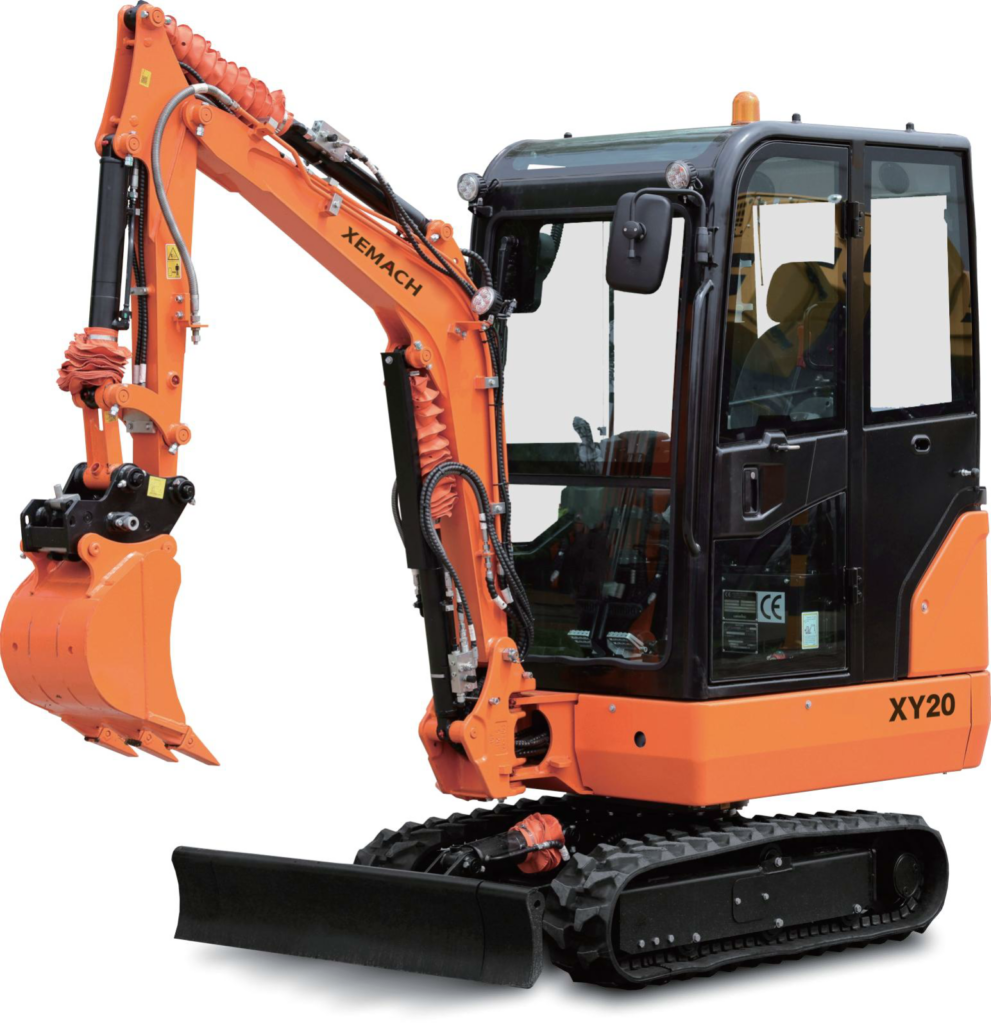

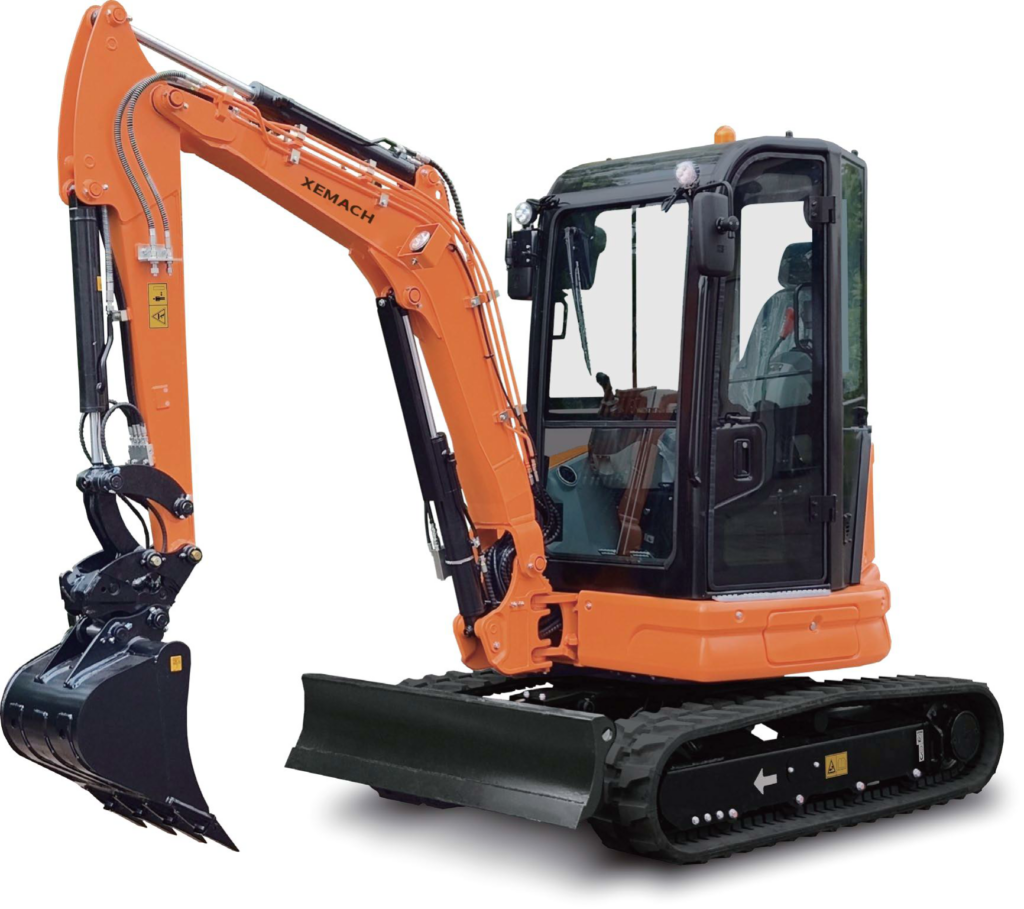

| Parameter | XY16 | XY20 | XY25 | XY35 | |
| Basic | Operating weight | 1700 kg | 2000 kg | 2650 kg | 3850 kg |
| Standard bucket Capacity | 0.04 m³ | 0.04 m³ | 0.08 m³ | 0.11 m³ | |
| Max.Travel speed | 2.3/4.0 km/h | 2.5/4.5km/h | 2.6/4.4km/h | 2.3/4.0 km/h | |
| Max.Swing speed | 10 rpm | 10 rpm | 10 rpm | 9.5 rpm | |
| Grade ability | 35°(70%) | 30° | 30° | 30° | |
| Ground pressure | 25 kPa | 30 kPa | 25.1 kPa | 34 kPa | |
| Max.Traction force | 15.6 kN | 16.7 KN | 30.7 KN | 27.4 KN | |
| Engine | Engine model | D902-EF08-ON4 | YANMAR 3TNV80F | YANMAR 3TNV80-PSU |
KUBOTA D1703 |
| Rated power | 11.8 kW/2300 rpm | 13.4 kW/2200 rpm | 14.6 kW/2400 rpm | 18.2 kW/2200 rpm | |
| Max.Torque | 51.3/1500 N.m/rpm | ||||
| Displacement | 0.898 L | 1.267 L | 1.267 L | 1.647 L | |
| Fuel tank | 17 L | 21 L | 26 L | 40 L | |
| Hydraulic | Max.Flow(total) | 61.6 L/min | 61.6 L/min | 2×28.8+19.2+6.5 L/min | 88 L/min |
| Max.Working pressure | 24 Mpa | 24 Mpa | 23.5 Mpa | 24.5 Mpa | |
| Max.Pilot pressure | 3.5 Mpa | 3.5 Mpa | 3.2 Mpa | 3.2 Mpa | |
| Max.Arm digging force | 8.8 kN(ISO) | 12 kN | 14(15.8) kN | 18(19.8) kN | |
| Max.Bucket digging force | 15.2 kN(ISO) | 21 kN | 24 kN | 31.8 kN | |
| Hydraulic oil tank | 18 L | 26 L | 41 L | 41 L | |
| Chassis | Track width | 230 mm | 230 mm | 300 mm | 300 mm |
| Track shoes number | 37( each side) | ||||
| Carrier plates number | 2( each side) | 1( each side) | 1( each side) | 1( each side) | |
| Track rollers number | 3( each side) | 3( each side) | 4( each side) | 4( each side) | |
| Electric | System vollage | 12 V | 12 V | 12 V | 12 V |
| Battery capacity | 12 V,45 Ah | 12 V,70Ah | 12 V,45 Ah | 12 V,45 Ah | |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY
REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Crawler Excavator
High End Excavator · Mini Size
Optional configuration：
- Multi-sized bucket
- Rubber track
- Quick coupler
- Safeguard
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
