Original range specifications

Technical Specifications

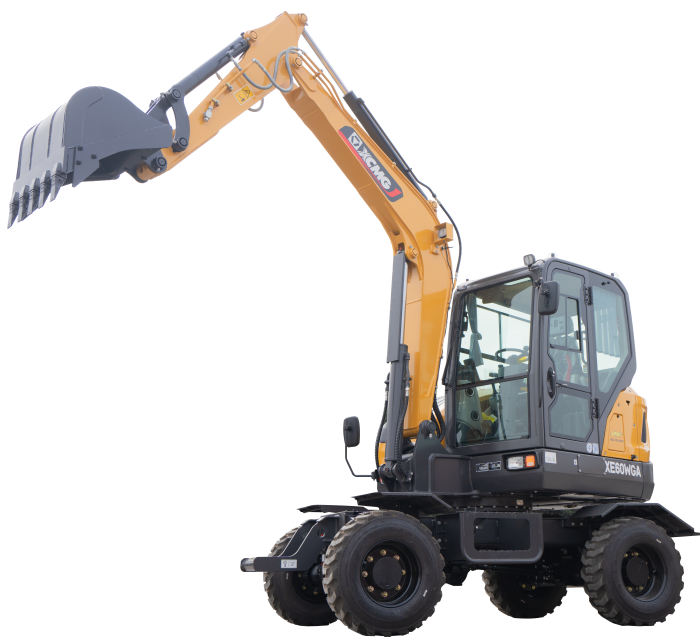

Category Item Unit XE60 XE80 XE150
General Operating weight kg 5900 7100 14000
Engine Model – YCF3050-T450 YCF3075-T302 QSF4.5
Direct injection – √ √ √
Four strokes – √ √ √
Water cooled – √ √ √
Turbocharged – √ √ √
Air to air intercooler – √ √ √
Number of cylinders – 4 4 4
Rated power/speed kW/rpm 36.8 / 2200 55.8 / 2200 108 / 2200
Maximum torque/speed N·m 240 / 1200-1400 4 600 / 1200
Piston displacement L 2.982 2.982 4.5
Main Performance Travel speed (H/L) km/h 23/10 46111 13089
Swing speed r/min 10 10 12
Gradeability – 30° (58%) 35° (70%) 70
Bucket digging force kN 45 36 95
Arm digging force kN 30 24 72
Maximum tractive force kN 32 42 77
Hydraulic System Main pump – 1 × plunger pump 1 × Variable pump 2 × Piston pumps
Travel system pressure bar 230 230 31.4
Swing system pressure bar 230 230 25
Pilot system pressure bar 32 3.2 3.9
Oil Capacity Fuel tank capacity L 115 125 250
Hydraulic tank capacity L 95 90 135
Dimensions A Overall length mm 6185 6365 7714
B Overall width mm 1949 2130 2495
C Overall height mm 2910 3060 3180
D Counterweight clearance mm 970 1048 1252
E Minimum ground clearance mm 290 290 380
F Minimum tail swing radius mm 1690 1970 2310
G Wheel base mm 2100 2400 2800
H Tread width mm 1600 1608 2 × 296
I Width of platform mm 1880 2070 2490
J The distance from front axle to the rotary center mm 1230 1400 1700
K Engine hood height mm 1970 2028 2474
Working Range L1 Maximum digging reach mm 6145 6550 7780
L2 Maximum ground digging radius mm 5940 7570
L3 Maximum digging height mm 5750 6950 8190
L4 Maximum dumping height mm 4210 5090 5855
L5 Maximum digging depth mm 3550 3630 4630
L6 Maximum depth cut for 8 ft level bottom mm 3150 3325 4325
L7 Maximum vertical wall digging depth mm 2520 3155 4150
L9 Maximum dozer lifting height mm 435 470 534
L10 Maximum dozer cutting depth mm 155 120 98
Standard Length of boom mm 3000 3400 4600
Length of arm mm 1600 1900 2100
Bucket capacity m³ 0.21 0.24(general duty) 0.6
Optional Length of boom –
Length of arm 2500
Bucket capacity 0.26 / 0.70
