Original range specifications
Technical Specifications

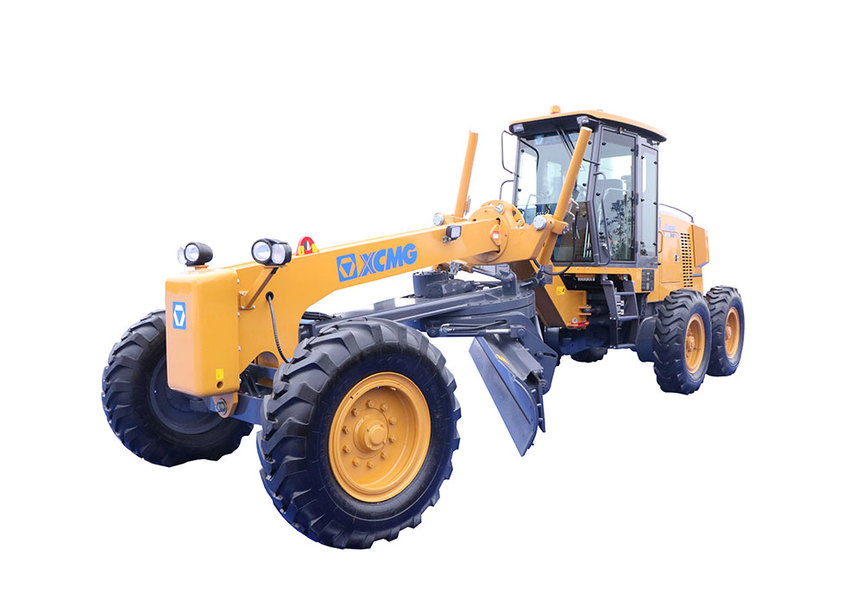

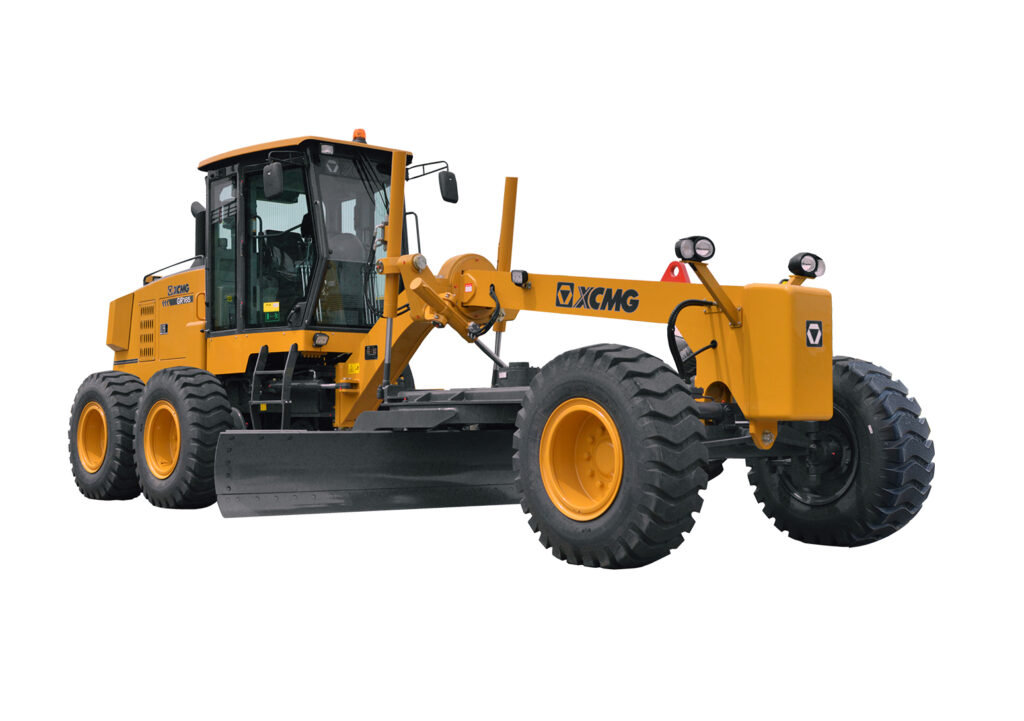

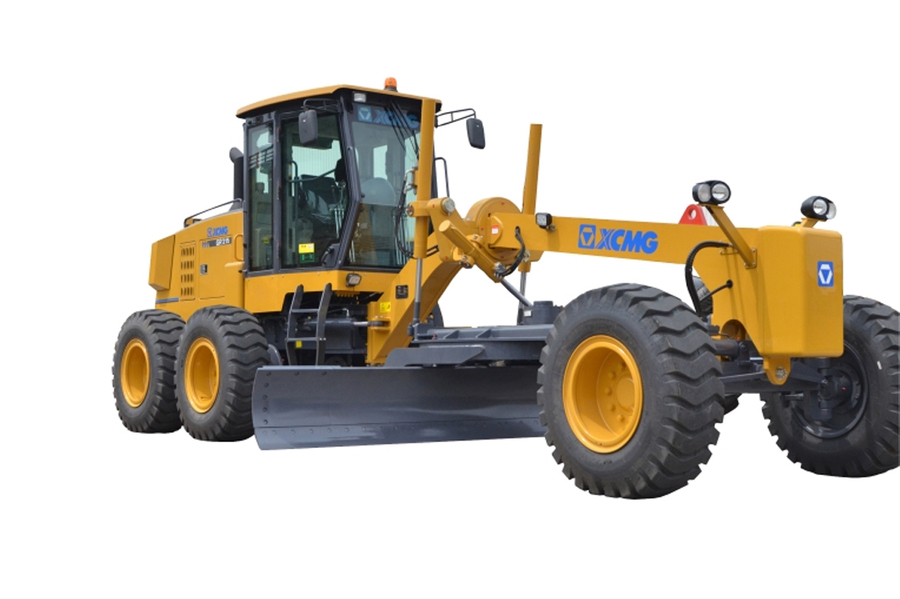

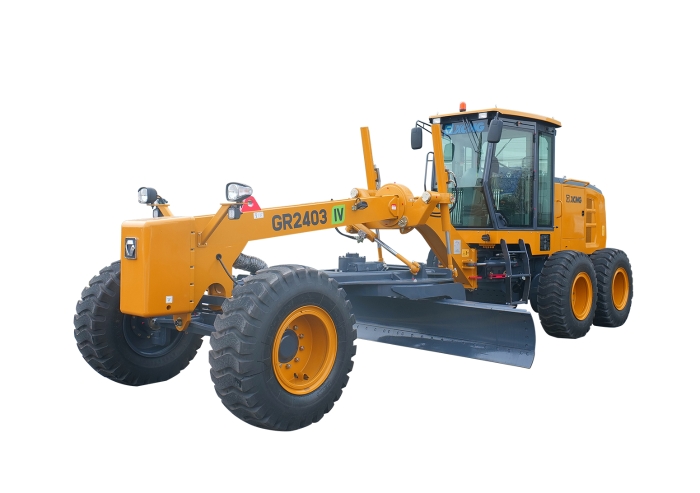

| Category | Item | Unit | GR135 | GR165 | GR180 | GR215 | GR2403 |
|---|---|---|---|---|---|---|---|
| Basic Parameters | Engine model | – | 6BTA5.9-C150-II | 6BTA5.9-C180-II | 6CTA8.3-C190-II | 6CTA8.3-C215 | QSB6.7 |
| Rated power/speed | kW/rpm | 112/2200 | 132 / 2200 | 142/2200 | 160 / 2200 | 178/2000 | |
| Overall dimension (standard) | mm | 8015×2380×3050 | 8900 × 2625 × 3420 | 8900×2625×3420 | 8970 × 2625 × 3420 | 8970×2625×3420 | |
| Total weight (standard) | kg | 11200 | 15000 | 15400 | 16500 | 17000 | |
| Tire specification | – | 13.00-24 | 17.5-25 | 17.5-25 | 17.5-25 | 17.5-25 | |
| Ground clearance (front axle) | mm | 515 | 430 | 430 | 430 | 430 | |
| Tread | mm | 2020 | 2156 | 2156 | 2156 | 2156 | |
| Performance Parameters | Space of front and rear axles | mm | 5780 | 6219 | 6219 | 6219 | 6219 |
| Space of middle and rear wheels | mm | 1538 | 1538 | 1538 | 1538 | 1538 | |
| Forward speed | km/h | 5, 8, 13, 20, 30, 42 | 5, 8, 11, 19, 23, 38 | 5/8/11/19/23/38 | 5, 8, 11, 19, 23, 38 | 5, 8, 11, 19, 23, 38 | |
| Reverse speed | km/h | 5, 13, 30 | 5, 11, 23 | 5, 11, 23 | 5, 11, 23 | 5, 11, 23 | |
| Tractive effort (f=0.75) | kN | ≥59 | ≥77 | ≥79 | ≥85 | ≥87 | |
| Maximum gradeability | % | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
| Inflation pressure of tires | kPa | 300 | 260 | 260 | 260 | 260 | |
| Working Parameters | Working system pressure | MPa | 16 | 16 | 18 | 16 | 20 |
| Transmission pressure | MPa | 1.3-1.8 | 1.3-1.8 | 1.4-1.8 | 1.3-1.8 | 1.3—1.8 | |
| Maximum steering angle of front wheels | ° | ±49 | ±50 | ±48 | ±50 | ±48 | |
| Maximum inclination angle of front wheels | ° | ±17 | ±17 | ±17 | ±17 | ±17 | |
| Maximum swing angle of front axle | ° | ±15 | ±15 | ±15 | ±15 | ±15 | |
| Maximum swing angle of balance box | ° | ±16 | front 15, rear 15 | ±15 | front 15, rear 15 | Front 15, rear 15 | |
| Maximum steering angle of frame | ° | ±27 | ±27 | ±27 | ±27 | ±27 | |
| Minimum turning radius | m | 6.6 | 7.3 | 7.3 | 7.3 | 7.3 | |
| Maximum lifting height | mm | 410 | 450 | 450 | 450 | 400 | |
| Maximum shoveling depth | mm | 515 | 500 | 500 | 500 | 500 | |
| Blade Parameters | Maximum lateral inclination angle | ° | 90 | 90 | 90 | 90 | 90 |
| Cutting angle | ° | 54-90 | 28-70 | 28-70 | 28-70 | 28—70 | |
| Slewing angle | ° | 360 | 360 | 360 | 360 | 360 | |
| Length × chord height | mm | 3660×610 | 3660 × 610 | 3660×610 | 3965 × 610 | 3965×610 | |
| Oil Filling Amount | Coolant | L | 50 | 50 | 50 | 50 | 50 |
| Fuel tank | L | 280 | 280 | 280 | 280 | 280 | |
| Engine oil | L | 18 | 24 | 24 | 24 | 24 | |
| Transmission oil | L | 26 | 38 | 38 | 38 | 38 | |
| Balance box oil | L | 46 | 46 | 120 | 46 | 73×2 | |
| Drive axle oil | L | 28 | 28 | 36 | 28 | 25 | |
| Hydraulic oil | L | 96 | 110 | 110 | 110 | 110 |
