| Engine | XY60W | XY150W | XY170(动臂4600) | XY210W |
| Engine Model | Yanmar | Cummins | Cummins | Cummins |
| Cylinder Number | 4 | 6 | 6 | 6 |
| Rated Power(kw/r/min) | 49.9kw | 110kw | 110kw | 126kw |
| Standard Configuration | ||||
| Armor | 3000mm | 4400mm(option 4600mm) | 4600mm | 5600mm |
| Stick | 1600mm | 2100mm | 2500mm | 3000mm |
| Bucket | 0.175m3 | 0.57m3 | 0.65m3 | 0.92m3 |
| Operation weight | 5700kg | 14200kg | 15500kg | 20100kg |
| Max. excavation | ||||
| Bucket | 4.24ton | 9.25ton(9.81ton) | 9.81ton | 14.3ton(15.17ton) |
| Stick | 2.81ton | 7.06ton(7.49ton) | 7.49ton | 9.6ton(10.17ton) |
| Hydraulic System | ||||
| Main pump | Axial piston pump | Variable piston | Variable piston | Axial piston pump |
| Max Flow | 2*60L | 2*167L/min | 2*136L/min | 2*231.7L/min |
| Swing System | ||||
| Driving methord | Hydraulic driving | Hydraulic driving | Hydraulic driving | Hydraulic driving |
| Reduction machanism | Planetary gear reduction | Planetary gear reduction | Planetary gear reduction | |
| Swing operation brake | Wet multi-disc brakes | Wet multi-disc brakes | Wet multi-disc brakes | Wet multi-disc brakes |
| Swing Speed | 9.3rpm | 12.2rpm | 12.2rpm | 11.3rpm |
| Drive unit and brake | ||||
| Steering control | Steering wheel control | Pedal and steering wheel control | Steering wheel control | |
| Driving methord | Hydraulic drive | Hydraulic drive | Hydraulic drive | Hydraulic drive |
| Walking motor | Axial piston pump | Axial piston pump | Axial piston pump | Axial piston pump |
| Walking speed(fast/low) | 30/11km/h | 34.4/8.5/3.3km/h | 35.2/8.7/3.5km/h | |
| Operating brake | Hydraulic brake | Hydraulic brake | Hydraulic brake | |
| Parking brake | Pilot-operated mechanical brake | Wet multi-disc brakes | Wet multi-disc brakes | |
| Tank capacity | ||||
| Fuel Tank Capacity(L) | 116L | 280L | 280L | 292L |
| Hydraulic Oil Tank Capacity(L) | 72L | 140L | 140L | 122L |
| Hydraulic cylinder | ||||
| Armor | 110*75*1035mm | 110*75*1035mm | 120*85*1245mm | |
| Stick | 115*80*1092mm | 115*80*1092mm | 135*95*1450mm | |
| Bucket | 95*65*900mm | 95*65*900mm | 120*80*1060mm | |

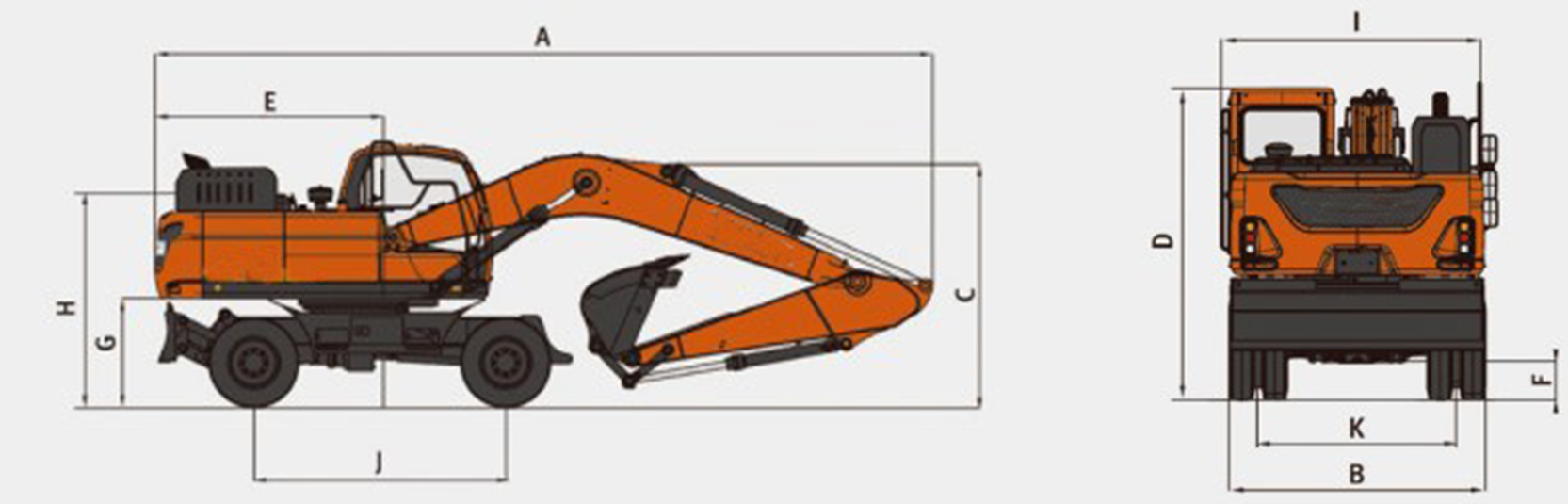

| Dimensions | XY60W | XY150W | XY170(动臂4600) | XY210W |
| Transport length | 5810mm | 7490mm | 7670mm | 9433mm |
| Transport width | 1954mm | 2523mm | 2523mm | 2424mm |
| Transport height | 2340mm | 3230mm | 3210mm | 3365mm |
| Total high (to the top of the cab) | 2940mm | 3040mm | 3040mm | 3138mm |
| Tail turning radius | 1650mm | 2320mm | 2320mm | 2727mm |
| Minimum ground clearance | 314mm | 350mm | 350mm | 488mm |
| Counterweight ground clearance | 1017mm | 1206mm | 1206mm | 1260mm |
| Engine hood ground clearance | 1987mm | 2456mm | 2546mm | 2307mm |
| Transit width | 1865mm | 2554mm | 2554mm | 2522mm |
| Front and rear wheelbase | 2100mm | 2800mm | 2800mm | 2850mm |
| Left and right wheel track | 1600mm | 1944mm | 1944mm | 1914mm |

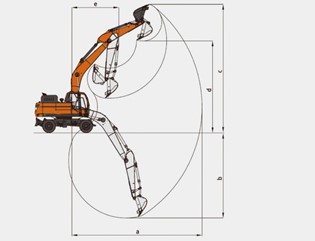

| Maximum digging radius | 6120mm | 7615mm | 7817mm | 10013mm |
| Digging depth | 3451mm | 4509mm | 4642mm | 6208mm |
| Digging height | 6051mm | 8311mm | 8457mm | 10280mm |
| Maximum loading height | 1772mm | 5885mm | 6091mm | 7345mm |
| Minimum turning radius | 1650mm | 2196mm | 2257mm | 3412mm |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY
REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Wheel Excavator

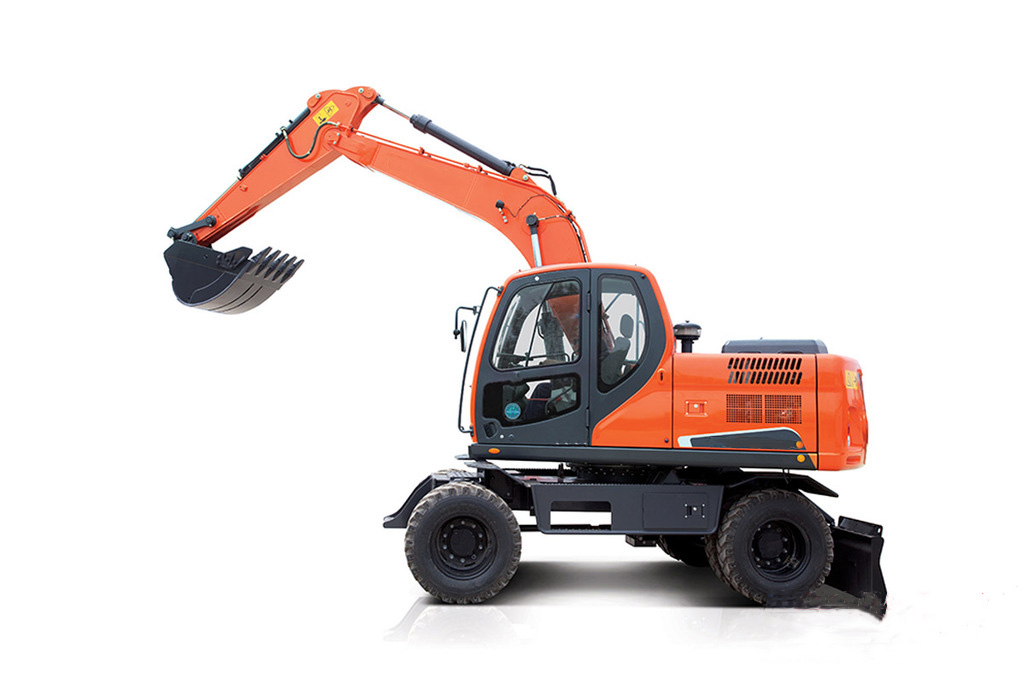

Wheel Excavator
| Engine Model | Cummins |
| Cylinder Number | 4/6 |
| Rated Power(kw/r/min) | 49kw/110kw/126kw |
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
