| Category | Unit | MINI | XT-02 | XT-04 | XT-06 | XT-08 | XT-08S | XT-10 | XT-14 | XT-17 | XT-20 |
| Length | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 980-1120 | 1005-1150 | 1100-1200 |
| Width | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 550-600 | 602-666 | 610-760 |
| Height | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 550-600 | 560-615 | 620-750 |
| Arm open width | mm | 82-145 | 155-172 | 181-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-450 | 380-480 | 500-650 |
| Pins center distance | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 550-600 | 520-630 | 600-800 |
| Pin Diameter | mm | 25-40 | 40-45 | 45-55 | 60-65 | 70-80 | 90 | 90-100 | 100-110 | 100-110 | 120-140 |
| Cylinder strok | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 510-580 | 500-650 | 600-700 |
| Vertical pins center distance | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 | 370-380 | 370-380 |
| Weight | kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 | 550-750 | 1300-1500 |
| Working pressure | bar | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Necessary flow | l | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suitable excavator | ton | 1-4 | 4-7 | 6-9 | 10-15 | 18-23 | 23-26 | 26-30 | 30-40 | 40-52 | 55-90 |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY
REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Attachment

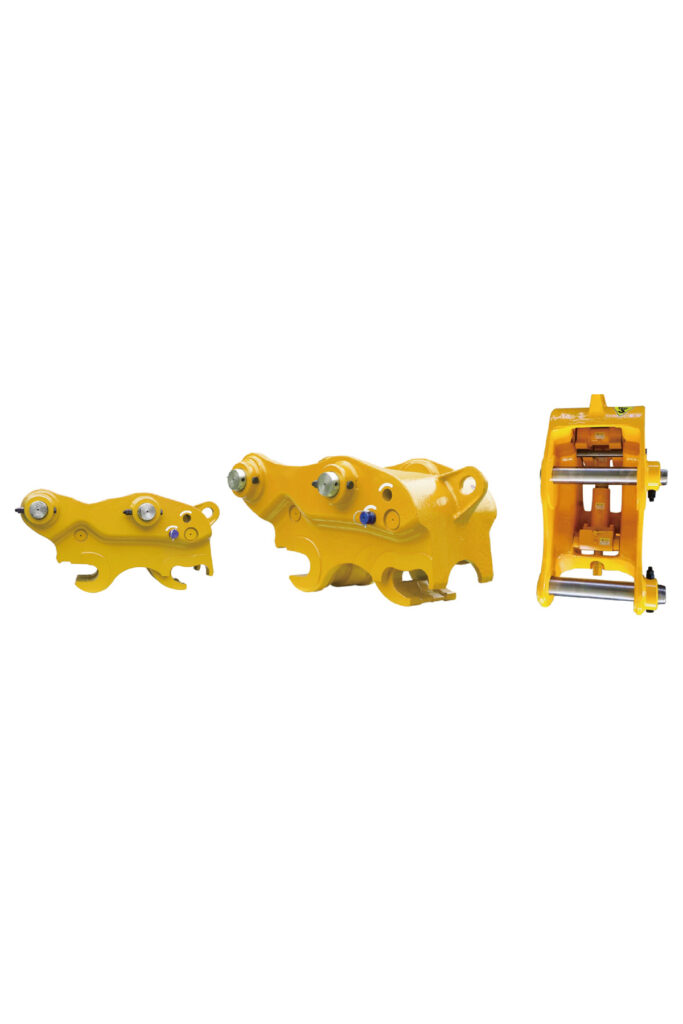

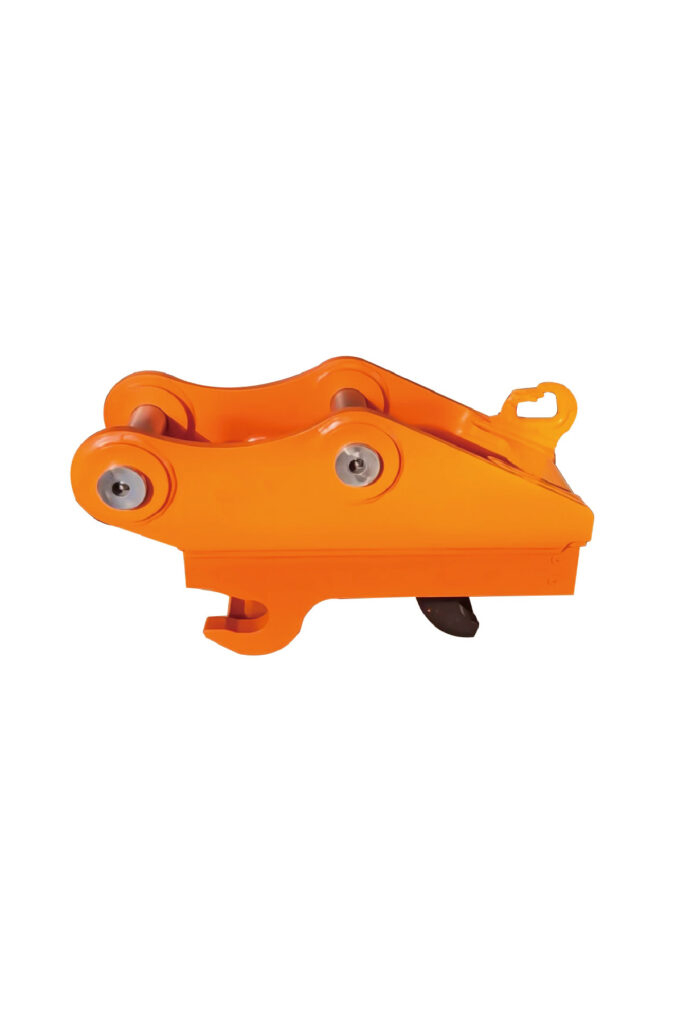

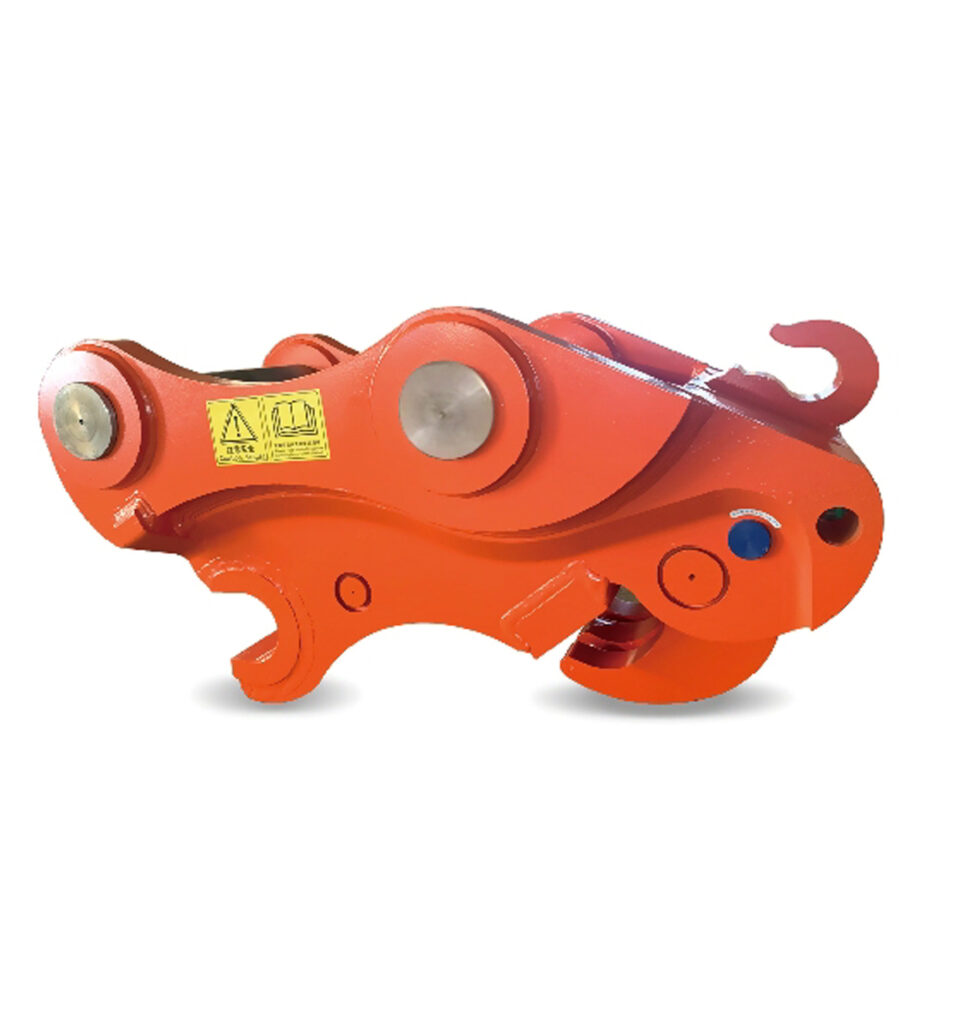

Quick Hitch Coupler
Category Unit MINI XT-02 XT-04 XT-06 XT-08 XT-08S XT-10 XT-14 XT-17 XT-20 Length mm 300-450 520-542 581-610 760 920-955 950-1000 965-1100 980-1120 1005-1150 1100-1200 Width mm 150-250 260-266 265-283 351-454 450-483 445-493 543-572 550-600 602-666 610-760 Height mm 225-270 312 318 400 512 512-540 585 550-600 560-615 620-750 Arm open width mm 82-145 155-172 181-205 […]
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
Email: info@xemach.com
WhatsApp: +1 669 292 4923
Choose the configuration
MODELS & SPECIFICATIONS.
Final specifications, equipment availability and commercial terms are confirmed in your written proposal.
See the equipment
PRODUCT VIDEOS.
A partner beyond the purchase
SUPPORT FOR
WHAT COMES NEXT.
Plan delivery, documentation and parts support around the equipment you select.
Our service processWhat should I include in my enquiry?
Equipment type, quantity, destination and working conditions. If you have a preferred model or attachment, include it so we can prepare a relevant quotation.
How do I arrange replacement parts?
Provide the machine serial number, component number and clear photographs. We confirm compatibility before preparing a parts proposal.
What warranty applies?
Coverage, exclusions, duration and service responsibilities are specified in your supply agreement. Contact us with the machine serial number and purchase reference.
