| Parameter | XY60 | XY80 | XY150 | XY230 | XY260 | XY380 | XY420 |
| Engine | |||||||
| Engine Brand | Yanmar | Yanmar | Cummins | ISUZU | Cummins | ISUZU | ISUZU |
| Engine Model | 4TNV94 | 4TNV98 | QSB3.9 | 4HK1 | QSB7 | 6HK1 | 6HK1 |
| No. of Cylinders | 4 | 4 | 4 | 4 | 6 | 6 | 6 |
| Rated Power/Speed | 36.2kw/2200rpm | 42.4kw/2000rpm | 93kw | 133KW/2000rpm | 169kw/2000rpm | 212kw/2000rpm | 212kw/2000rpm |
| Emmisiion Standard | EURO V/EPA4 | EURO V/EPA4 | T2/T3 | T2/T3 | T3 | T2/T3 | T2/T3 |
| Basic Parameter | |||||||
| Digging Bucket | 0.21m3 | 0.3m3 | 0.58m3 | 1.05m3 | 1.26m3 | 1.6-1.8m3 | 1.8-2.1m3 |
| Track Width | 380mm | 450mm | 600mm | 23626kg | 24500kg | 33500kg | 39400kg |
| Operation Weight | 5525kg | 7500kg | 14000kg | Swing System | |||
| Travel Speed(High/Low) | 4.3/2.4km | 4.5/2.9km/hr | 5.1/3.1/km/h | 12.4rpm | 5.5/3.2km/h | 5.7/3.2km/h | 4.7/2.7km/h |
| Fluid Capacity | |||||||
| Fuel Tank | 115L | 130l | 265L | 350L | 360L | 460L | 581L |
| Hydraulic Oil Tanks | 62L | 90l | 145L | 240L | 240L | 295L | 385L |
| Bucket Digging Force | 40.2kN | 5.3ton | 10.5ton | 136.3kN | 136.9kN | 189kN | 240kN |
| Stick Digging Force | 24.5kN | 3.7ton | 6.7ton | 97.1kN | 97.9kN | 131kN | 178kN |
| Dimension | |||||||
| Transportation height(to the top of the boom) | 1970 | 2610 | 2640 | 3100 | 3100 | 3300 | 3600 |
| Transportation height(to the top of the hose) | 2040 | 2680 | 2821 | 3180 | 3180 | 3410 | 3690 |
| Transport Length | 5870 | 6030 | 7730 | 9710 | 9730 | 11050 | 11315 |
| Transport Width | 1860 | 2180 | 2600 | 3000 | 3192 | 3285 | 3350 |
| Upper Structure Width | 1765 | 2130 | 2515 | 2800 | 2800 | 3070 | 3155 |
| Tumbler Distance | 1990 | 2110 | 3034 | 3680 | 3680 | 4040 | 4050 |
| Overall Track Length | 2540 | 2750 | 3740 | 4450 | 4450 | 4910 | 4975 |
| Undercarriage Width | 1860 | 2180 | 2600 | 3192 | 3192 | 3285 | 3350 |
| Track Width | 380 | 450 | 600 | 600 | 600 | 600 | 600 |
| Track Height | 615 | 695 | 742 | 960 | 960 | 1090 | 1060 |
| Min. Ground Clearance | 260 | 370 | 414 | 460 | 460 | 530 | 500 |
| Max. Digging Reach | 6170 | 6270 | 8301 | 9873 | 9873 | 10748 | 10967 |
| Max. Digging Reach(Ground) | 6033 | 6115 | 8157 | 9699 | 9699 | 10553 | 10762 |
| Max. Digging Depth | 3808 | 4080 | 5623 | 6592 | 6592 | 7320 | 6923 |
| Max. Loading Height | 4051 | 5170 | 6315 | 6830 | 6830 | 7259 | 7003 |
| Min. Loading Height | 1460 | 2345 | 2176 | 2501 | 2501 | 2732 | 2942 |
| Max. Digging Height | 5800 | 7100 | 8759 | 9616 | 9616 | 10243 | 10106 |
| Max. Bucket Pin Height | 4951 | 6150 | 7550 | 8274 | 8274 | 8885 | 8766 |
| Max. Vertical Wall Depth | 2371 | 2670 | 2861 | 3929 | 3929 | 4414 | 3024 |
| Max. Vertical Digging Radius | 4810 | 4750 | 5387 | 7988 | 7988 | 8567 | 9675 |
| Min. Digging Reach | 314 | 560 | 284 | 562 | 562 | 360 | 1647 |
| Min. Swing Radius | 2365 | 1745 | 2374 | 3560 | 3560 | 4019 | 4526 |
| Tail Swing Radius | 1650 | 1750 | 2247 | 2730 | 2930 | 3500 | 3530 |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY

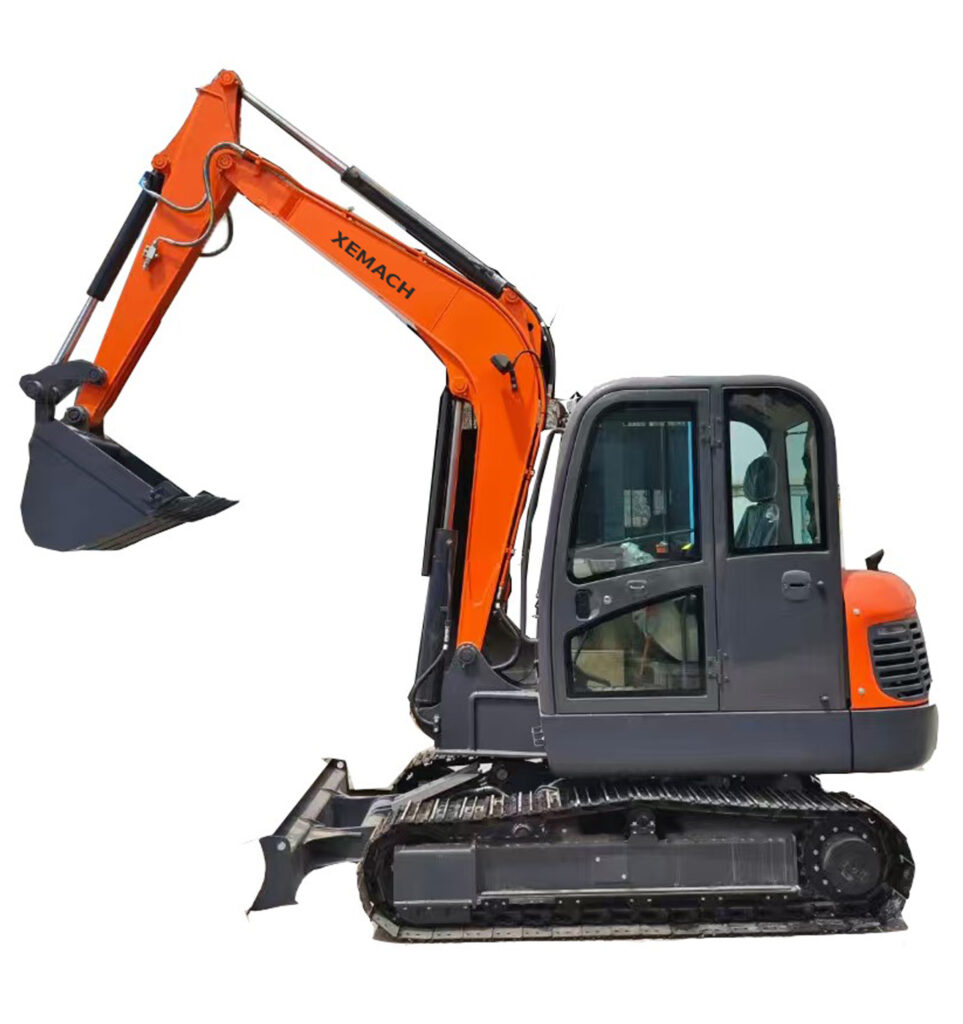

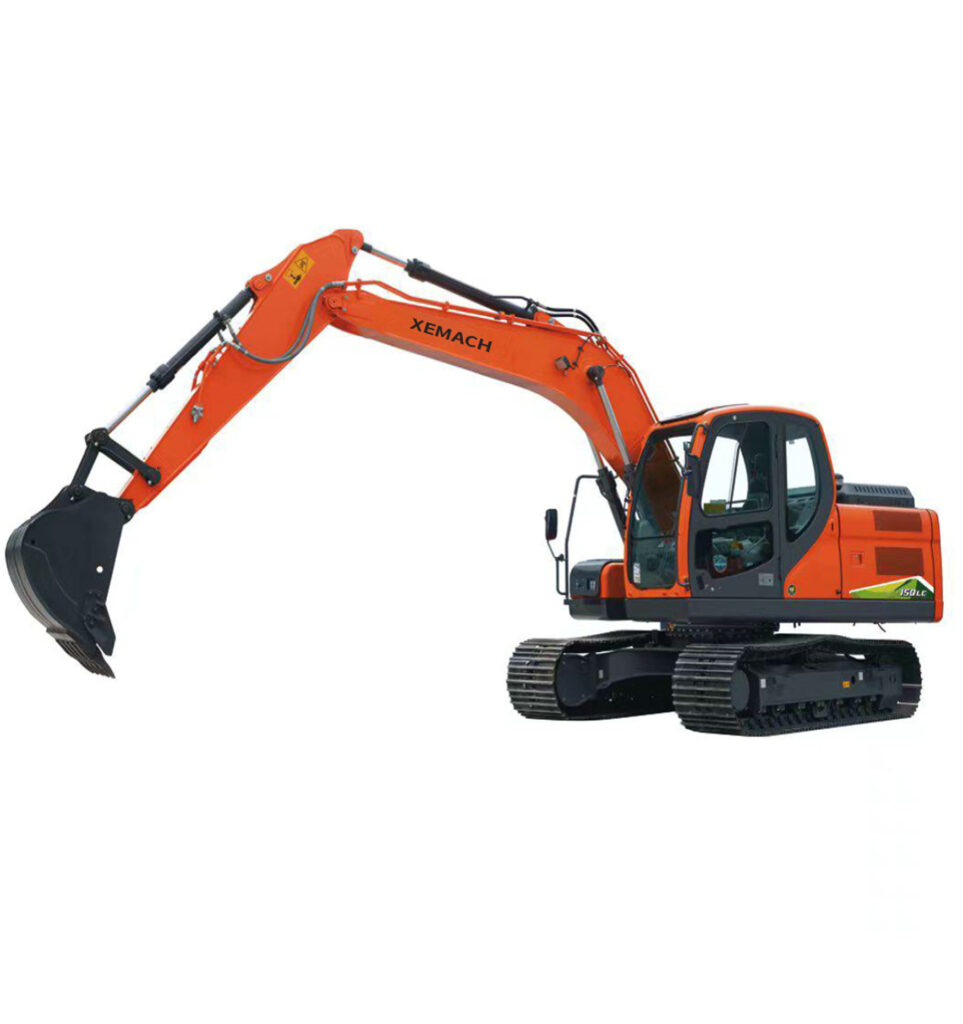

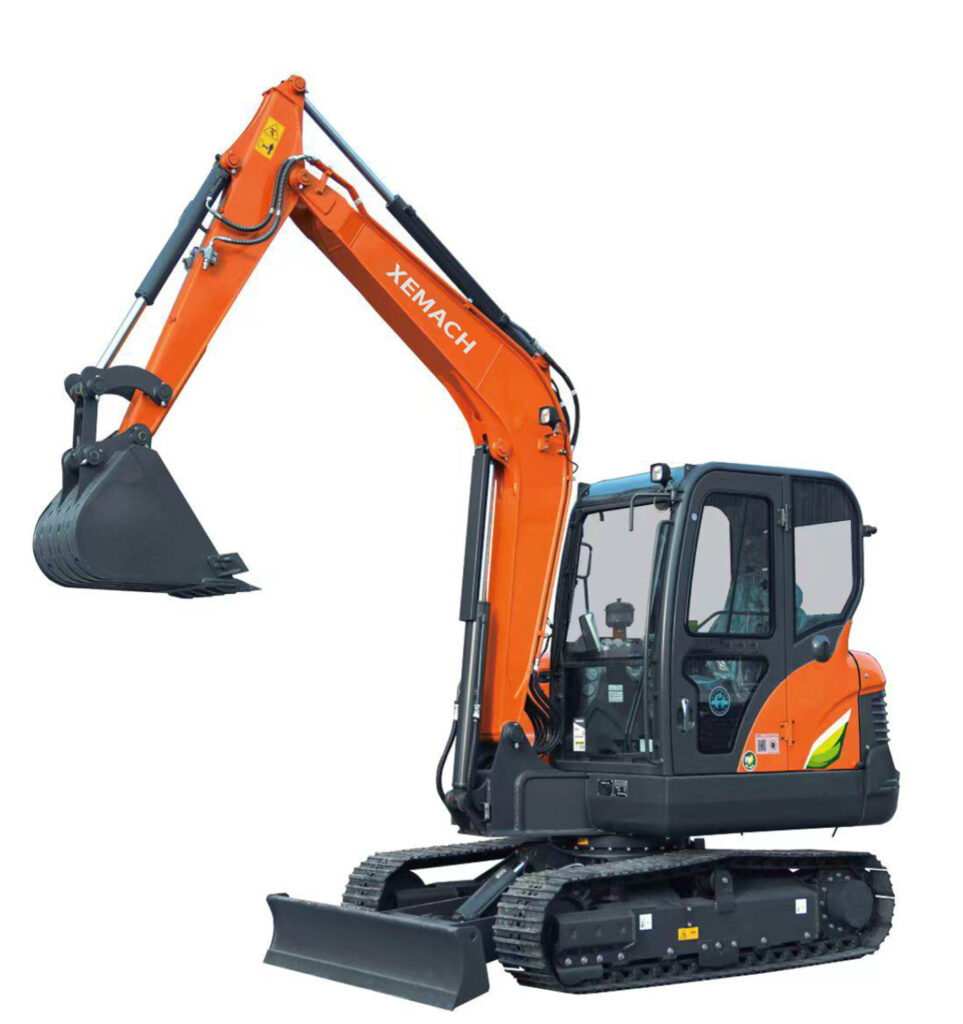

REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Crawler Excavator
Middle End Excavator · Small&Middle Size
- Engine: Yanmar/Cummins/ISUZU
- Hyd system: Kawasaki
- Emission: EURO V/EPA4/T2/T3
- Air conditioning
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
Email: info@xemach.com
WhatsApp: +1 669 292 4923
Choose the configuration
MODELS & SPECIFICATIONS.
Final specifications, equipment availability and commercial terms are confirmed in your written proposal.
See the equipment
PRODUCT VIDEOS.
A partner beyond the purchase
SUPPORT FOR
WHAT COMES NEXT.
Plan delivery, documentation and parts support around the equipment you select.
Our service processWhat should I include in my enquiry?
Equipment type, quantity, destination and working conditions. If you have a preferred model or attachment, include it so we can prepare a relevant quotation.
How do I arrange replacement parts?
Provide the machine serial number, component number and clear photographs. We confirm compatibility before preparing a parts proposal.
What warranty applies?
Coverage, exclusions, duration and service responsibilities are specified in your supply agreement. Contact us with the machine serial number and purchase reference.
