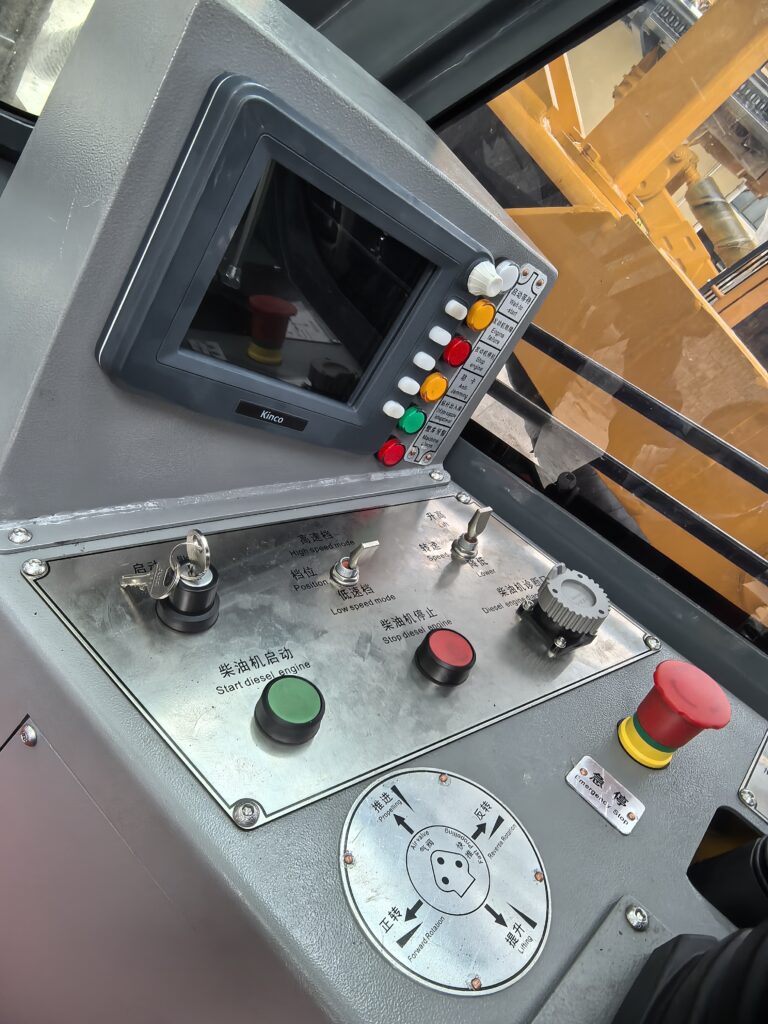

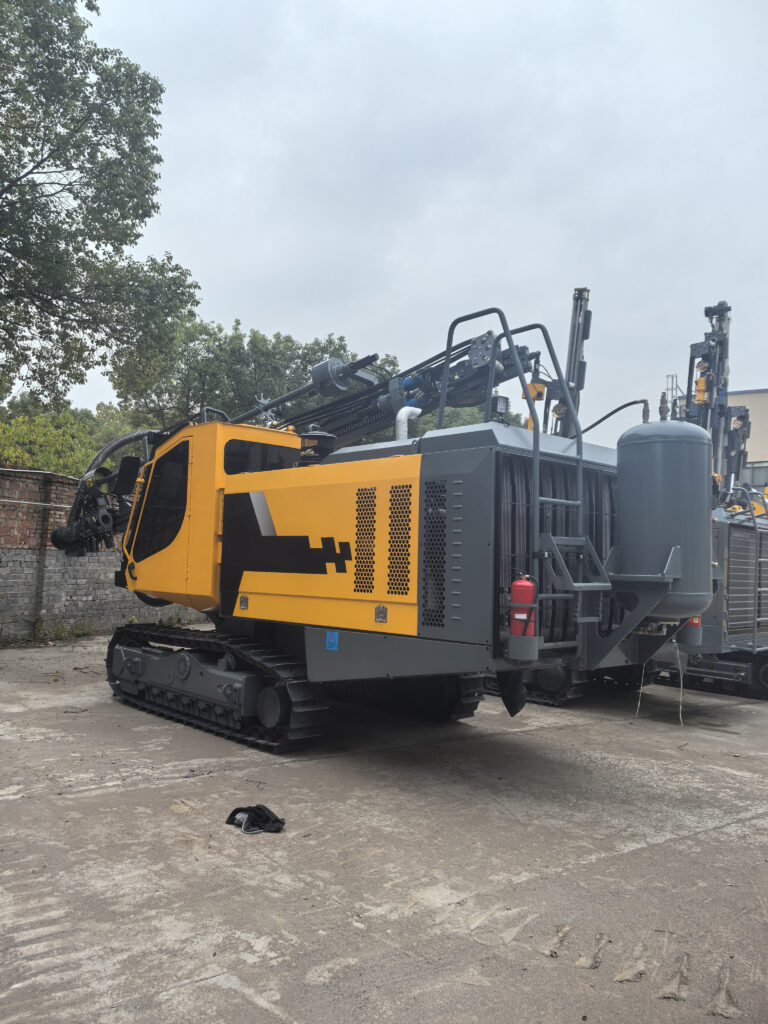

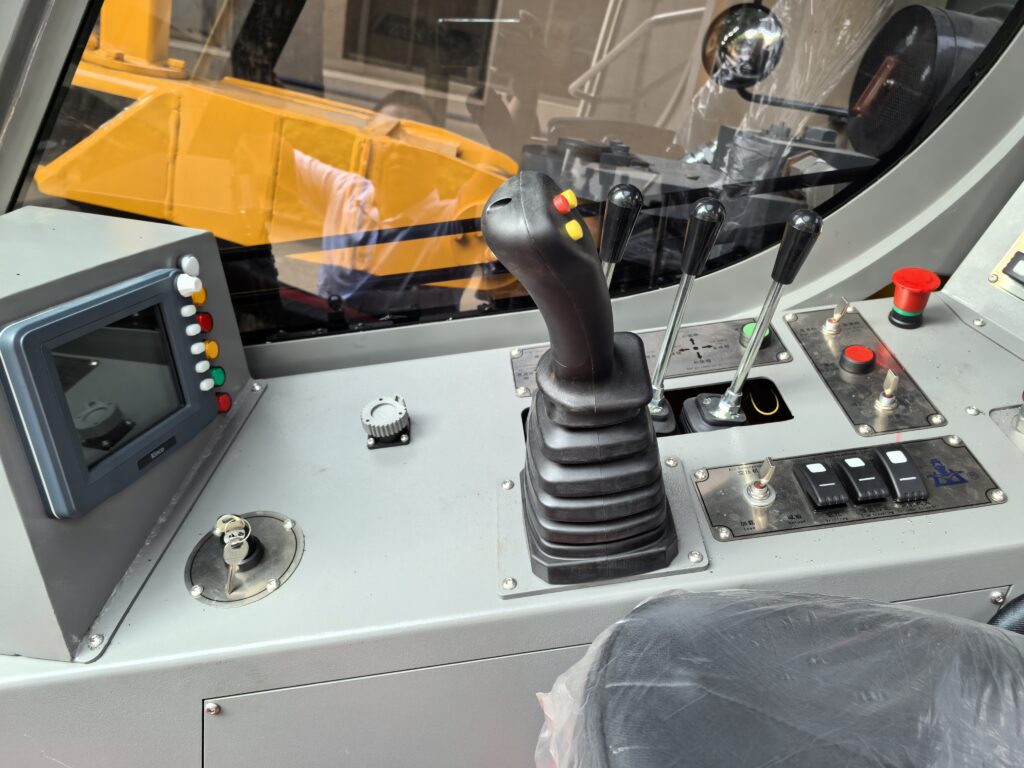

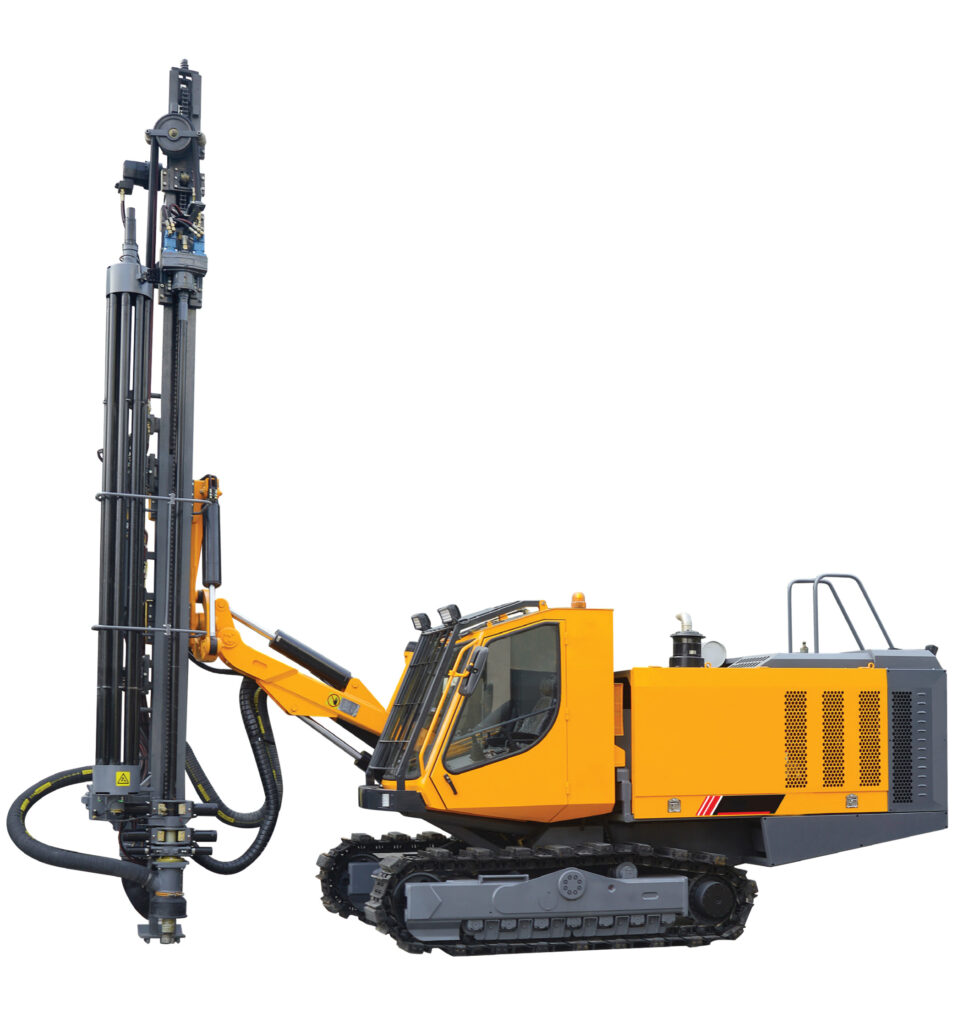

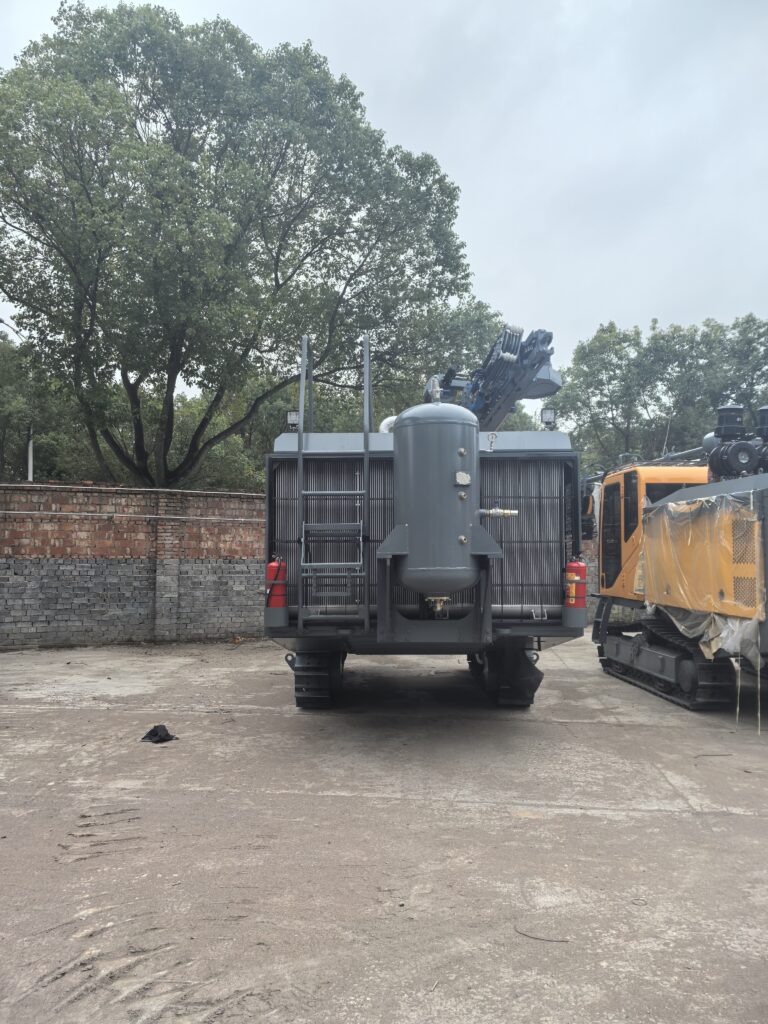

The integrated surface DTH drilling rig can drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes. It is driven by the Cummins diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. The drill rig is equipped with the automatic rod handling system, drilling rod floating slide module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, optional drilling angle and depth indication function, etc. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc
| Parameter | XT11 | XT12 |
| Transport dimensions (L×W×H) | 9100*2600*3300mm/3600mm | 9900*2600*3350mm/3600mm |
| Weight | 17000kg | 17500kg |
| Rock hardness | f=6-20 | f=6-20 |
| Drilling diameter | 90-140mm | 115-152mm |
| Ground clearance | 420mm | 420mm |
| Leveling angle of track | 10° up, 10° down | 10° up, 10° down |
| Travelling speed | 0-3km/h | 0-3km/h |
| Climbing capacity | 25° | 25° |
| Traction | 120KN | 120KN |
| Rotary torque（Max) | 2800Nm(max.) | 3450Nm(max.) |
| Rotation speed | 0-120rpm | 0-120rpm |
| Lifting angle of drill boom | up 47°, down 20° | up 47°, down 20° |
| Swing angle of drill boom | right 50°，left 15° | right 50°，left 15° |
| Swing angle of carriage | right 96°，left 30° | right 96°，left 30° |
| Tilt angle of beam | 114° | 114° |
| Compensation stroke | 1353mm | 1353mm |
| Feed stroke | 4490mm | 4490mm |
| Maximum propelling force | 40KN | 40KN |
| Method of propulsion | Motor+Roller chain | Motor+Roller chain |
| Depth of economical drilling | 32m | 28m |
| Number of rods | 7+1 | 6+1 |
| Specifications of drilling rod | Φ64/ Φ76*4000mm | Φ76/ Φ89*4000mm |
| DTH hammer | 3”， 4” | 3”， 4” |
| Engine | Cummins QSL8.9-C325-30 | Cummins QSL8.9-C360-30 |
| Output power | 242 KW/2200 rpm | 264 KW/2200 rpm |
| Screw air compressor | 20bar /Two stage compression 18m3/min /20bar | Two stage compression 20m3/min/22bar |
| Traveling control system | Hydraulic pilot | Hydraulic pilot |
| Drilling control system | Hydraulic pilot | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V, DC | 24V, DC |
| Safe cab | Meet the requirements of FOPS & ROPS | Meet the requirements of FOPS & ROPS |
| Seat | Adjustable | Adjustable |
| Indoor noise | Below 85dB (A) | Below 85dB (A) |
| Air-conditioning | Standard temperature | Standard temperature |
| Entertainment | Mp3 /Radio +Mp3 | Mp3 /Radio +Mp3 |
