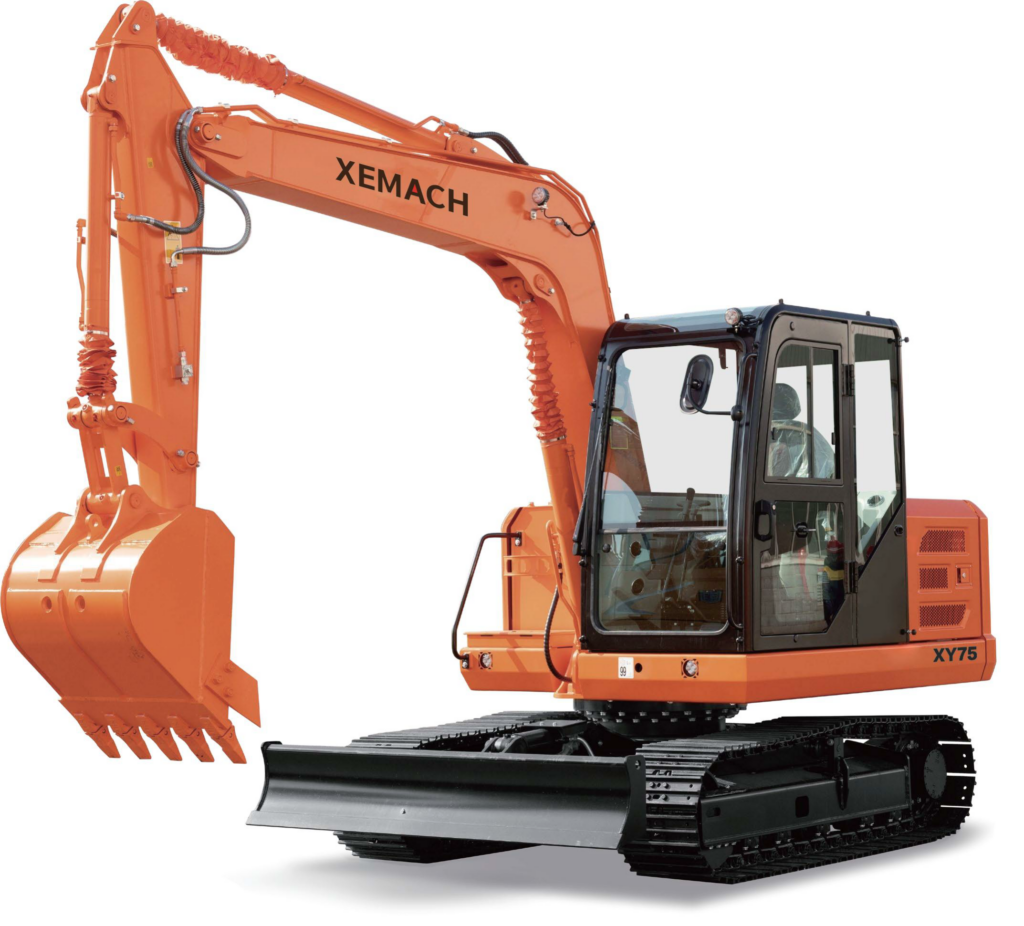

| Parameter | XY75 | XY135 | XY150 | XY205 | XY225 | XY260 | XY260F | XY336 | XY396 | |
| Basic | Operating weight | 7680 kg | 13600 kg | 14000 kg | 21100 kg | 21800 kg | 25800 kg | 25800 kg | 32800kg | 39300kg |
| Boom length | 3722 mm | 4600 mm | 4600 mm | 5675 mm | 5675 mm | 5900 mm | 5900 mm | 6150mm | 6500mm | |
| Arm length | 1620 mm | 2500 mm | 2500 mm | 2920 mm | 2920 mm | 2950 mm | 2950 mm | 3200mm | 2800mm | |
| Standard bucket Capacity | 0.28 m³ | 0.56 m³ | 0.56 m³ | 0.85 m³ | 1.1 m³ | 1.3 m³ | 1.3 m³ | 1.6m³ | 1.9m³ | |
| Max.Travel speed | 2.8/4.5 km/h | 3.3/5.5 km/h | 3.3/5.5 km/h | 3.2/5.1 km/h | 3.1/5.3 km/h | 3.5/5.6 km/h | 3.5/5.6 km/h | 3.6-6km/h | 3.1/5.3km/h | |
| Max.Swing speed | 11.5 rpm | 11.9 rpm | 11.9 rpm | 10.6 rpm | 13.5 rpm | 11.1 rpm | 11.1 rpm | 11rpm | 9.2rpm | |
| Grade ability | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | 35°(70%) | |
| Ground pressure | 34.5 kPa | 42.4 kPa | 42.4KPa | 47 kPa | 47.5 kPa | 53.6 kPa | 53.6 kPa | 62.7kPa | 71kPa | |
| Max.Traction force | 75 kN | 113 kN | 113 KN | 208 Kn | 218 kN | 211 kN | 211 kN | 283kN | 334kN | |
| Engine | Engine model | 4TNV98-ZCSLK | QSF3.8 | F3.8 | WP6G175E301 | 6BTAA5.9-C150-Ⅱ | QSB6.7-C190-31 | QSB6.7-C190-31 | 6LTAA8.9-C325 | 6LTAA8.9-C325 |
| Rated power | 46.3 kW/2200 rpm | 74 kW/2200 rpm | 90 kW/2200 rpm | 129 kW/2000 rpm | 112 kW/1950 rpm | 145 kW/2050 rpm | 145 kW/2050 rpm | 241/2000kW/rpm | 241/2000kW/rpm | |
| Max.Torque | 243/1550-1750 N.m/rpm | 420/1500 N.m/rpm | 420/1500N.m/rpm | 760/1400-1500 N.m/rpm | 614/1500 N.m/rpm | 931/1300 N.m/rpm | 931/1300 N.m/rpm | 1450/1300Nm/rpm | 1080/1500Nm/rpm | |
| Displacement | 3.319 L | 3.8 L | 3.8 L | 6.75 L | 5.9 L | 6.7 L | 6.7 L | 8.9L | 8.9L | |
| Fuel tank | 132 L | 290 L | 290 L | 400 L | 400 L | 480 L | 480 L | 600L | 600L | |
| Hydraulic | Max.Flow(total) | 156 L/min | 120×2 L/min | 120×2 L/min | 221×2 L/min | 260×2 L/min | 260×2 L/min | 260×2 L/min | 288×2L/min | 324×2L/min |
| Max.Working pressure | 28 Mpa | 34.3 Mpa | 34.3 M Pa | 35 Mpa | 35 Mpa | 34.3/37.4 Mpa | 34.3/37.4 Mpa | 34.3MPa | 34.3Mpa | |
| Max.Pilot pressure | 3.5 Mpa | 3.9 Mpa | 3.9Mpa | 4 Mpa | 4.0 Mpa | 3.9 Mpa | 3.9 Mpa | 3.9MPa | ||
| Max.Arm digging force | 38 kN(ISO) | 70 kN(ISO) | 70 KN(ISO) | 100 kN(ISO) | 101 kN(ISO) | 119/128 kN(ISO) | 119/128 kN(ISO) | 170kN | 210kN | |
| Max.Bucket digging force | 56 kN(ISO) | 85 kN(ISO) | 85 KN(ISO) | 133 kN(ISO) | 139 kN(ISO) | 167/180 kN(ISO) | 167/180 kN(ISO) | 220kN | 235kN | |
| Hydraulic oil tank | 120 L | 140/200 L | 200 L | 165/256 L | 256 L | 115/190 L | 115/190 L | 300L | 300L | |
| Chassis | Track width | 450 mm | 500 mm | 500 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600mm | 600mm |
| Track shoes number | 38( each side) | 43( each side) | 45( each side) | 46( each side) | 47( each side) | 49( each side) | 49( each side) | 47×2 | 49×2 | |
| Carrier plates number | 1( each side) | 2( each side) | 2( each side) | 2( each side) | 2( each side) | 2( each side) | 2( each side) | 2×2 | 2×2 | |
| Track rollers number | 5( each side) | 7( each side) | 7( each side) | 7( each side) | 8( each side) | 9( each side) | 9( each side) | 2×2 | 9×2 | |
| Electric | System vollage | 12 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 | 24 |
| Battery capacity | 12 V,100 Ah | 24 V,100 Ah×2 | 100 Ah×2 | 24 V,120 Ah×2 | 24 V,120 Ah×2 | 24 V,120 Ah×2 | 24 V,120 Ah×2 | 24/165×2 | 24/165×2 | |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY
REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Crawler Excavator
High End Excavator · Small&Middle Size
Optional configuration
- Breaking hammer pipeline
- Work alarm light
- Walking alarm
- Protecting net
- 600/700/800mm triple grouser shoes
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
Email: info@xemach.com
WhatsApp: +1 669 292 4923
Choose the configuration
MODELS & SPECIFICATIONS.
Final specifications, equipment availability and commercial terms are confirmed in your written proposal.
