| Parameter | XY500F | XY550F | |
| Basic | Operating weight | 50500kg | 51000kg |
| Boom length | 7000mm | 7000mm | |
| Arm length | 3000mm | 2800mm | |
| Standard bucket Capacity | 2.6m³ | 3.2m³ | |
| Max.Travel speed | 3.4/5.3km/h | 3.4/5.3km/h | |
| Max.Swing speed | 8rpm | 8rpm | |
| Grade ability | 35°(70%) | 35°(70%) | |
| Ground pressure | 87.1kPa | 87.1kPa | |
| Max.Traction force | 396kN | 396kN | |
| Engine | Engine model | QSM11-C375 | 6WG1-XDHAG-03-C3 |
| Rated power | 280kW/2000rpm | 300 kW/1800rpm | |
| Max.Torque | 1898/1400 N.m/rpm | 1898/1400 N.m/rpm | |
| Displacement | 15.681L | 15.681L | |
| Fuel tank | 680L | 680L | |
| Hydraulic | Max.Flow(total) | 360×2L/min | 360×2L/min |
| Max.Working pressure | 34.3Mpa | 34.3Mpa | |
| Max.Pilot pressure | 3.9Mpa | 3.9Mpa | |
| Max.Arm digging force | 245kN(ISO) | 220kN(ISO) | |
| Max.Bucket digging force | 287kN(ISO) | 258kN(ISO) | |
| Hydraulic oil tank | 480L | 480L | |
| Chassis | Track width | 600mm | 600mm |
| Track shoes number | 50(each side) | 50(each side) | |
| Carrier rollers number | 2(each side) | 2(each side) | |
| Track rollers number | 9(each side) | 9(each side) | |
| Electric | System vollage | 24V | 24V |
| Battery capacity | 24 V,200Ah×2 | 24 V,120Ah×2 | |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY

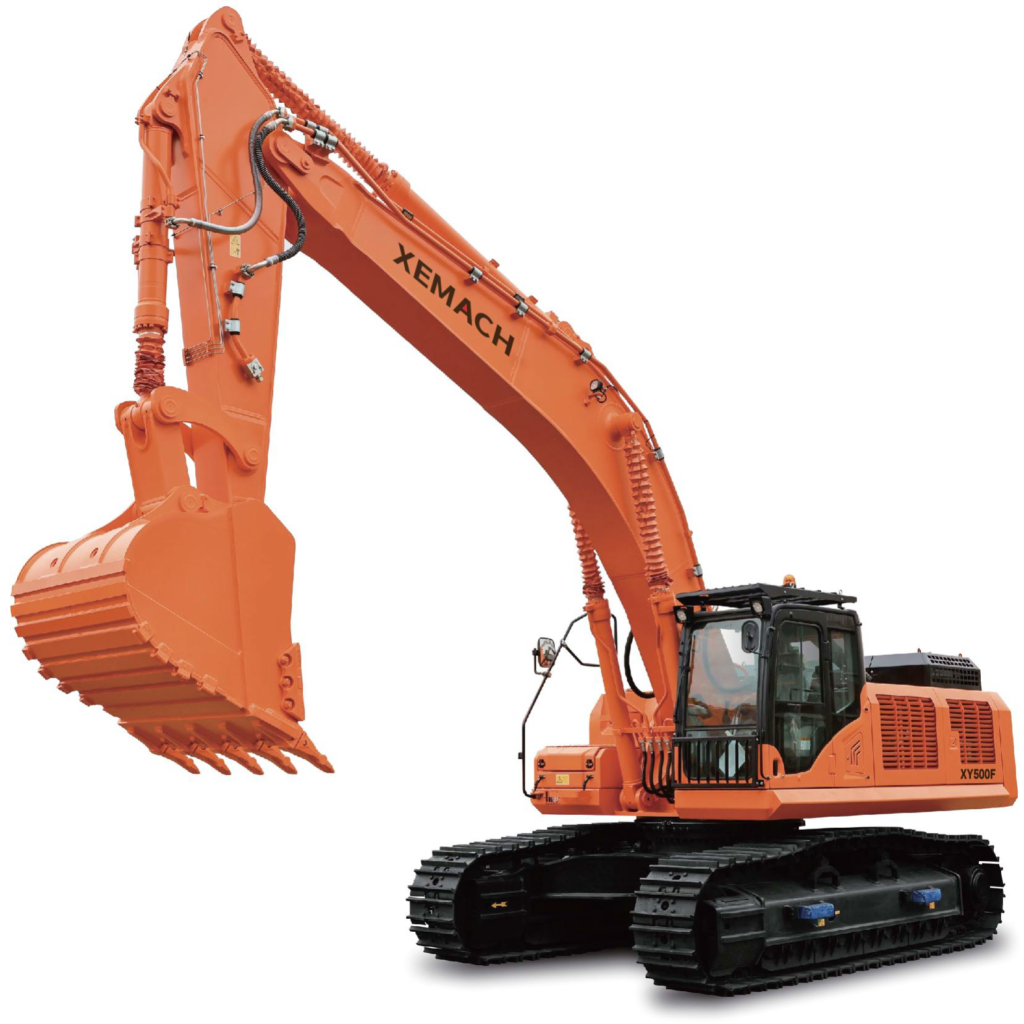

REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Crawler Excavator
High End Excavator · Large Size
Optional
- Breaking hammer pipeline
- Work alarm light
- Walking alarm
- Protecting net
- 700/800mm triple grouser shoes
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
Email: info@xemach.com
WhatsApp: +1 669 292 4923
Choose the configuration
MODELS & SPECIFICATIONS.
Final specifications, equipment availability and commercial terms are confirmed in your written proposal.
See the equipment
PRODUCT VIDEOS.
A partner beyond the purchase
SUPPORT FOR
WHAT COMES NEXT.
Plan delivery, documentation and parts support around the equipment you select.
Our service processWhat should I include in my enquiry?
Equipment type, quantity, destination and working conditions. If you have a preferred model or attachment, include it so we can prepare a relevant quotation.
How do I arrange replacement parts?
Provide the machine serial number, component number and clear photographs. We confirm compatibility before preparing a parts proposal.
What warranty applies?
Coverage, exclusions, duration and service responsibilities are specified in your supply agreement. Contact us with the machine serial number and purchase reference.
