| Category | Unit | XT-00 | XT-00S | XT-01 | XT-02 | XT-04 | XT-06 | XT-08 | XT-10 |
| Rotation Angle | ° | / | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Motor Pressure | kg/cm² | 90-110 | 90-110 | 90-110 | 110-120 | 110-120 | 130-150 | 130-150 | 130-150 |
| Necessary Flow | lpm | – | 20-35 | 20-35 | 30-55 | 30-55 | 40-70 | 40-70 | 40-70 |
| Oil Cylinder Force | ton | 4 | 4 | 4 | 8 | 9 | 15 | 16 | 18 |
| Oil Cylinder Pressure | kg/cm² | 110-140 | 110-140 | 110-140 | 160-200 | 160-200 | 180-230 | 180-230 | 200-250 |
| Operating flow | lpm | 5-15 | 5-15 | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 | 130-160 |
| Suitable Excavator | ton | 1-2 | 2-3 | 3-4 | 4-6 | 6-9 | 12-16 | 17-25 | 26-35 |
| Open width A | mm | 770 | 850 | 1160 | 1400 | 1500 | 1700 | 1950 | 2400 |
| Width C | mm | 350 | 425 | 450 | 500 | 600 | 800 | 1030 | 1200 |
| Depth E | mm | 205 | 250 | 326 | 437 | 440 | 445 | 530 | 652 |
| Weight | kg | 70 | 92 | 200-220 | 310-330 | 440-460 | 900-960 | 1350-1500 | 1700-2100 |
| Oil Cylinder Flow | L/min | 5-15 | 5-15 | 15-30 | 20-40 | 25-50 | 40-60 | 80-100 | 130-160 |
| Capacity(closed) | m3 | 0.029 | 0.053 | 0.09 | 0.15 | 0.2 | 0.34 | 0.6 | 1.01 |
XEMACH / EQUIPMENT
REFERENCE IMAGE / CONFIGURATION MAY VARY
REFERENCE IMAGE / CONFIGURATION MAY VARYXEMACH / Attachment

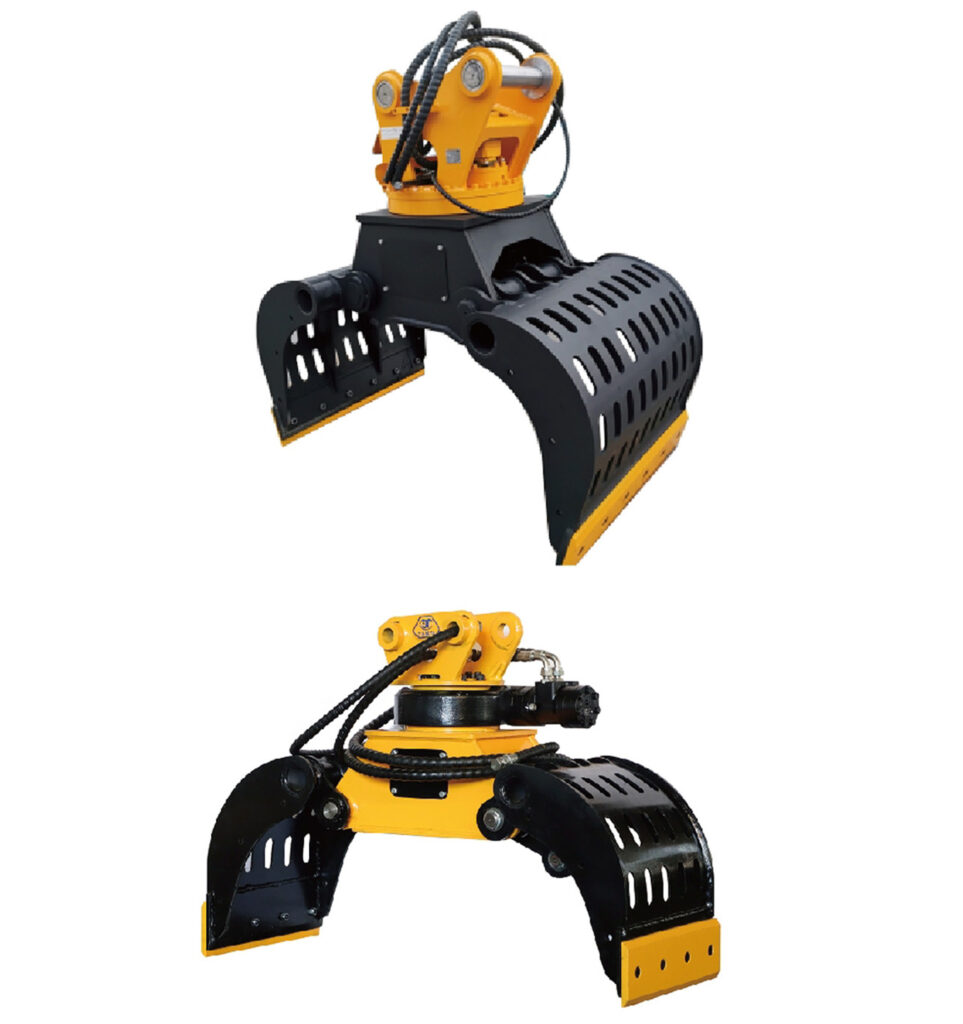

Demolition Grapple
Applications: Demolition of solid structures, scrap handling, cleaning, moving, loading, sorting and organizing materials in order
Explore the available models and technical specifications below. We’ll help confirm the configuration, application and delivery scope for your project.
Email: info@xemach.com
WhatsApp: +1 669 292 4923
Choose the configuration
MODELS & SPECIFICATIONS.
Final specifications, equipment availability and commercial terms are confirmed in your written proposal.
A partner beyond the purchase
SUPPORT FOR
WHAT COMES NEXT.
Plan delivery, documentation and parts support around the equipment you select.
Our service processWhat should I include in my enquiry?
Equipment type, quantity, destination and working conditions. If you have a preferred model or attachment, include it so we can prepare a relevant quotation.
How do I arrange replacement parts?
Provide the machine serial number, component number and clear photographs. We confirm compatibility before preparing a parts proposal.
