Technical Parameter
| Operating weight | 工作质量 | 14600kg |
| Maximum operating weight | 最大工作质量 | 15000kg |
| Front axle weight | 前桥分配质量 | 5200kg |
| Rear axle weight | 后桥分配质量 | 9800kg |
| Milling width | 铣刨宽度 | 1000mm |
| Milling depth | 铣刨深度 | 0-220mm |
| Knife spacing | 刀间距 | 18mm |
| Number of knives | 刀具数 | 72 |
| Milling drum speed | 铣刨鼓转速 | 106rpm |
| Rotor diameter[including cutting tools] | 含刀具时转子直径 | 860mm |
| Engine brand/power/speed | 发动机品牌/功率/转速/排放标准 | Dongkang 154kW@2200 China-Ⅳ |
| System voltage | 系统电压 | 24V |
| Width of material conveyor belt | 输料皮带宽度 | 400mm |
| Theoretical material transport capacity | 理论输料能力 | 90m³/h |
| Milling speed | 铣刨速度 | 2km/h |
| Walking ability | 行走速度 | 8km/h |
| Theoretical climbing ability | 理论爬坡能力 | ＞20° |
| Ground clearance | 离地间隙 | 175mm |
| Transportation length | 运输长度 | 7920mm |
| Transportation width | 运输宽度 | 2400mm |
| Transportation height | 运输高度 | 2940mm |
Strong power/fuel-efficient and efficient

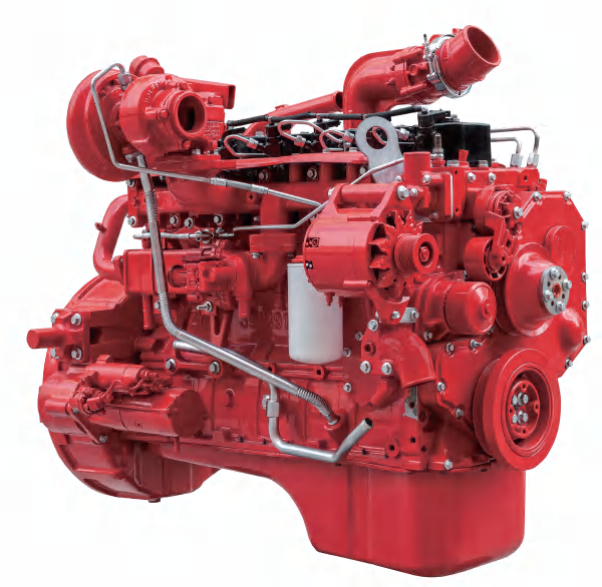

Dongkang 154Kw engine with a maximum torque of 820Nm; Capable of adapting to various working conditions, able to work continuously in a high temperature environment of 45 ℃, and operate continuously at an altitude of 4000m; Equipped with suction type water oil heat dissipation parallel technology, the radiator has a large heat dissipation area design and good heat dissipation effect.
Imported brand/good reliability
The key hydraulic components are all imported brands, with high reliability and long service life; The walking system and working system adopt a closed system, which is more efficient and has less loss; Forced diversion, easily overcome slip conditions; It can buffer external load impact and reduce the impact on the engine under harsh working conditions.
Logic concise/easy to implement

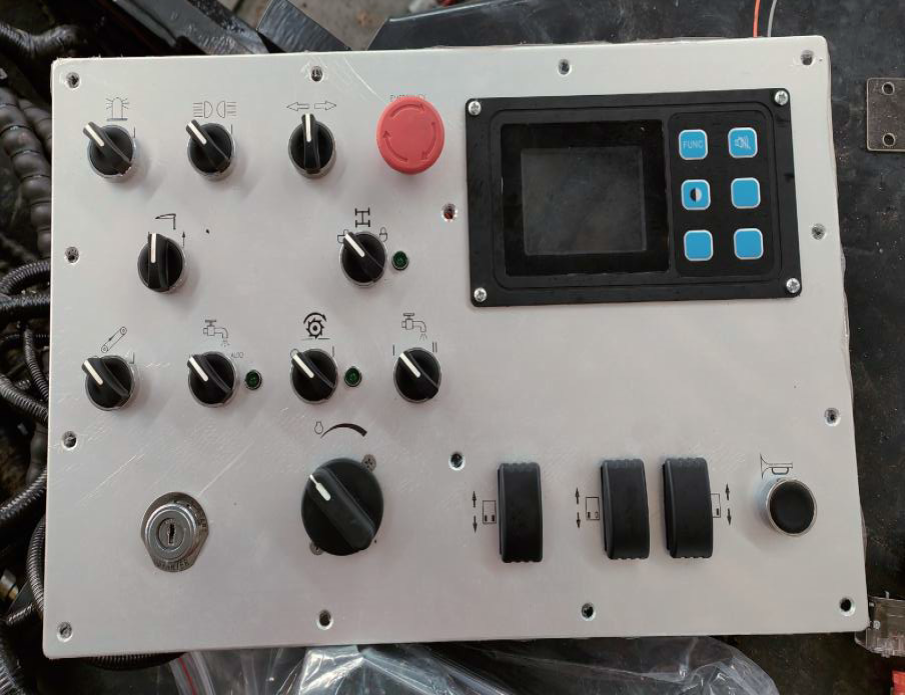

Control buttons, waterproof, dustproof, and vibration resistant; The electrical logic is concise, and the control panel is within reach, reducing the difficulty of manual operation; High definition display on LCD screen, easy to read fault codes; Equipped with an automatic leveling system to improve the smoothness of the milled road surface, completely freeing up the operator.

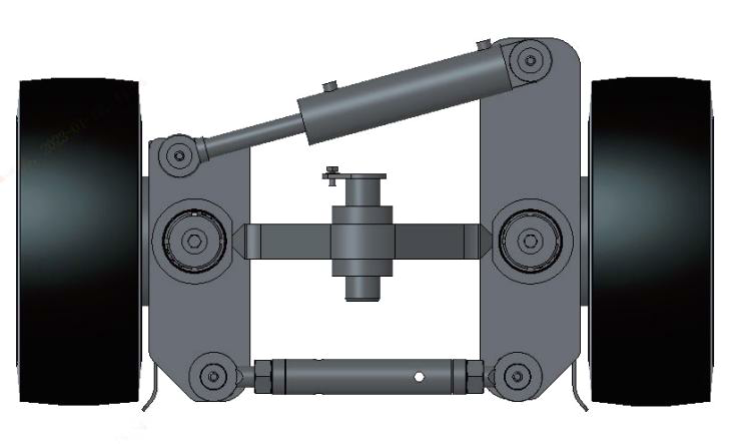

Flexible maneuverability/light turning

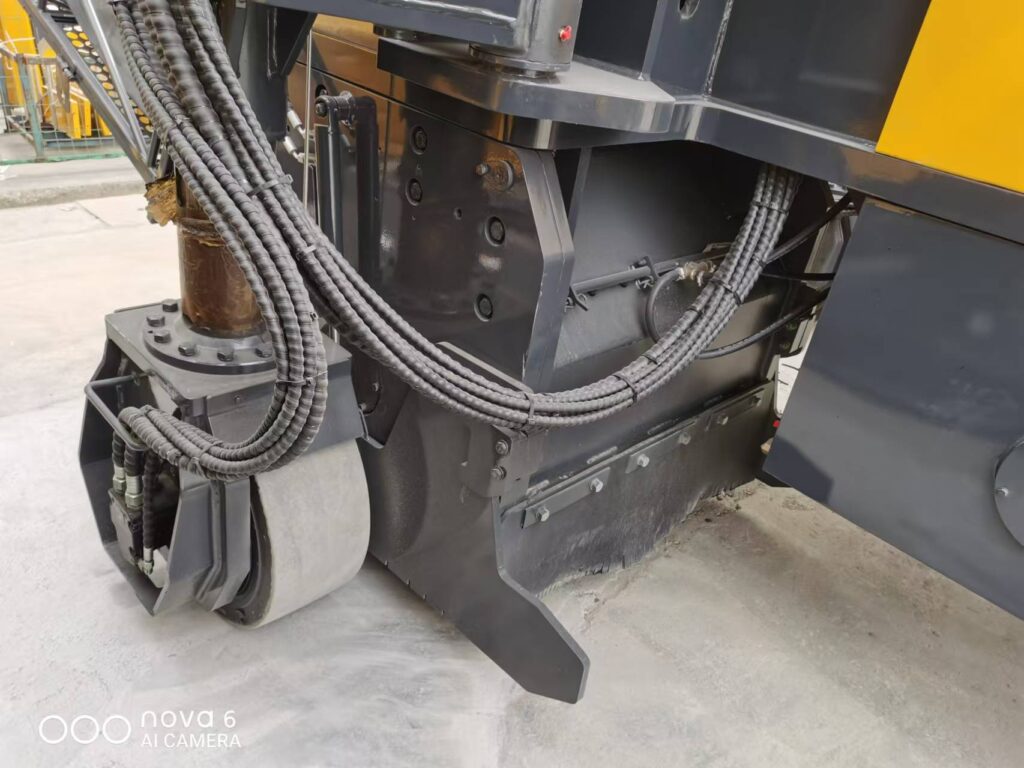

Small turning radius, more agile and maneuverable; The right column can be easily folded to meet the special working conditions of edge milling and planing; The vehicle has good passability in narrow spaces.
Sprinkler dust removal/good human-machine performance

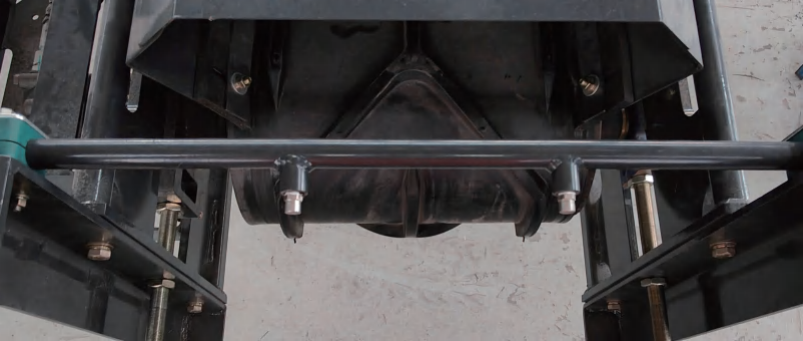

Equipped with a sprinkler and dust removal system to reduce milling dust and meet the requirements of municipal work; Reasonable control of the console and excellent all-round visibility of the operator; The distribution of functions and usage frequencies of the handle and switch facilitates manual operation and reduces control fatigue; Reduce noise and minimize hearing damage to the operator.
Efficient material transportation/easy to transport

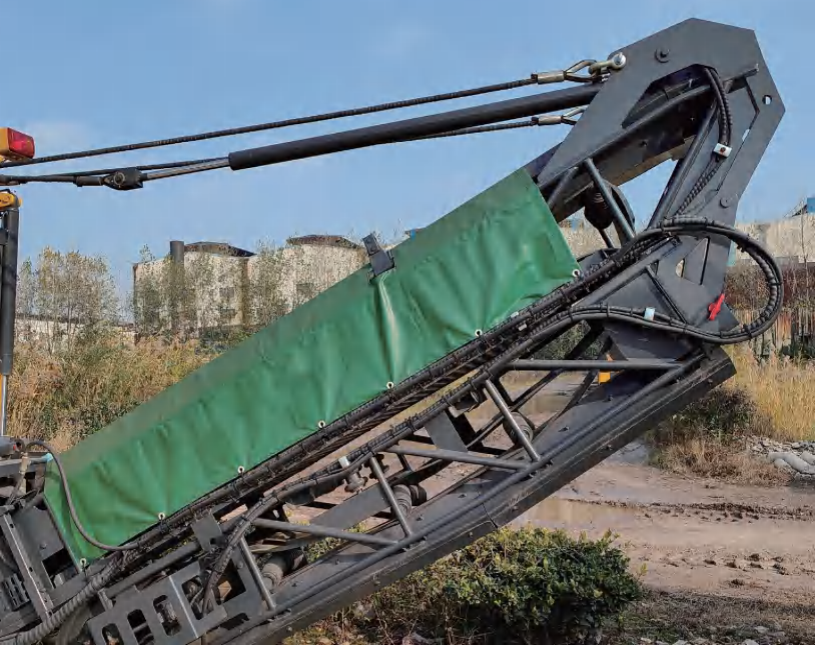

The theoretical material conveying capacity of the conveyor belt is 90m ³/h, which is fast and stable, ensuring a higher daily output; The feeding rack can turn left 25 ° and right 20 °, with a large swing to ensure the flexibility of the feeding belt. The material rack is easy to fold and transport.
Reasonable layout/convenient maintenance

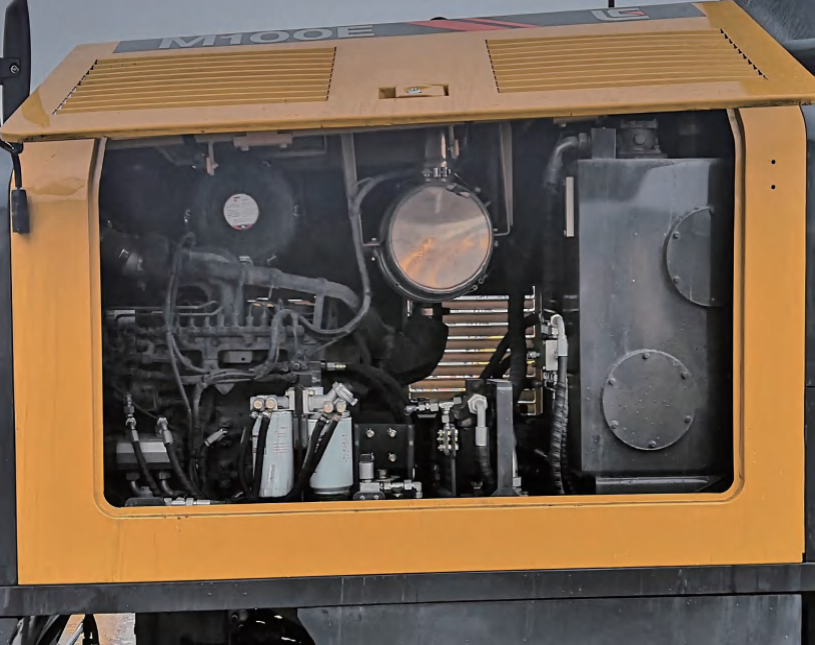

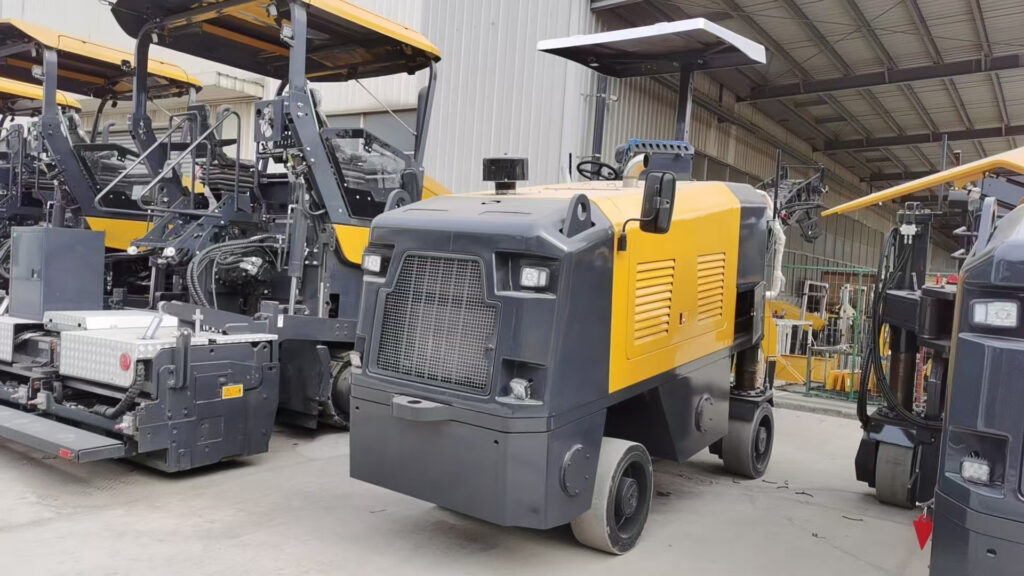

The doors on both sides of the hood can be opened significantly, making maintenance and upkeep easy; Open the maintenance door at the front of the radiator, which does not affect the air intake and is easy to clean the radiator dust cover; The internal space layout is reasonable, and maintenance points are centrally arranged. It can be operated from the ground, which is fast and convenient.
