| Engine Model | Yanmar |
| Cylinder Number | 4 |
| Rated Power | 49.9kw |
High spec, Reliable Performance, Low Energy Consumption
| Engine | |
| Engine Model | Yanmar |
| Cylinder Number | 4 |
| Rated Power | 49.9kw |
| Standard Configuration | |
| Armor | 3,000mm |
| Stick | 1,600mm |
| Bucket | 0.175m3 |
| Operation weight | 5,700kg |
| Max. excavation | |
| Bucket | 4.24ton |
| Stick | 2.81ton |
| Hydraulic System | |
| Main pump | Axial piston pump |
| Max flow | 2*60L |
| Swing System | |
| Driving methord | Hydraulic driving |
| Swing operation brake | Wet multi-disc brakes |
| Swing Speed | 9.3rpm |
| Drive unit and brake | |
| Steering control | Steering wheel control |
| Driving methord | Hydraulic drive |
| Walking motor | Axial piston pump |
| Walking speed(fast/low) | 30/11km/h |
| Operating brake | Hydraulic brake |
| Parking brake | Pilot-operated mechanical brake |
| Tank capacity | |
| Fuel Tank Capacity(L) | 116L |
| Hydraulic Oil Tank Capacity(L) | 72L |
| Antifreeze/Lubricant capacity | |
| Radiator antifreeze | 10L |
| Engine oil | 11.6L |
| Travel gearbox oil | 2.5L |
Technical Parameter

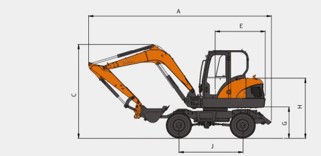

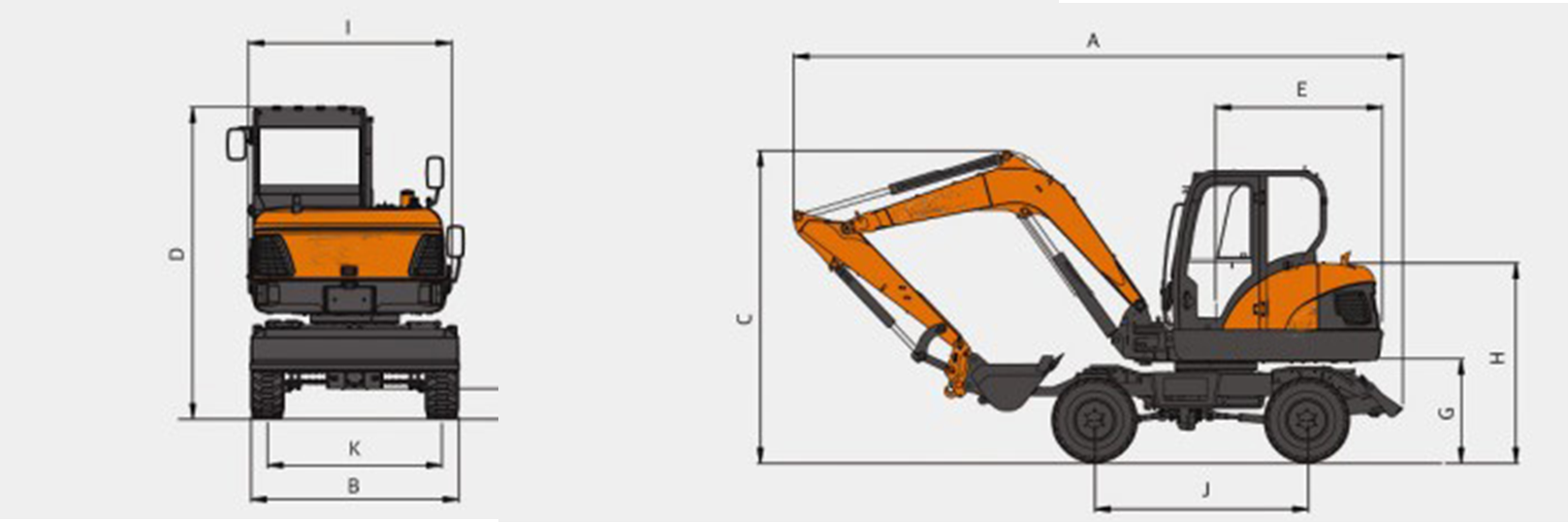

| Dimensions | ||
| A | Transport length | 7490mm |
| B | Transport width | 2523mm |
| C | Transport height | 3230mm |
| D | Total high (to the top of the cab) | 3040mm |
| E | Tail turning radius | 2320mm |
| F | Minimum ground clearance | 350mm |
| G | Counterweight ground clearance | 1206mm |
| H | Engine hood ground clearance | 2456mm |
| I | Transit width | 2554mm |
| J | Front and rear wheelbase | 2800mm |
| K | Left and right wheel track | 1944mm |

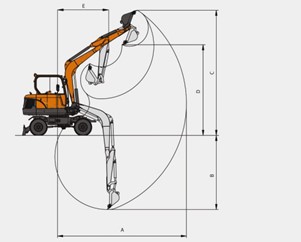

| a | Maximum digging radius | 7615mm |
| b | Digging depth | 4509mm |
| c | Digging height | 8311mm |
| d | Maximum loading height | 5885mm |
| e | Minimum turning radius | 2196mm |
