| Engine Model | Cummins |
| Cylinder Number | 6 |
| Rated Power(kw/r/min) | 126kw |
High Spec, Reliable Performacne, Low Energy Consumption
Main Configuration
| Engine | |
| Engine Model | Cummins |
| Cylinder Number | 6 |
| Rated Power(kw/r/min) | 126kw |
| Standard Configuration | |
| Armor | 5,600mm |
| Stick | 3,000mm |
| Bucket | 0.92m3 |
| Operation weight | 20,100kg |
| Max. excavation | |
| Bucket | 14.3ton(15.17ton) |
| Stick | 9.6ton(10.17ton) |
| Hydraulic System | |
| Main pump | Axial piston pump |
| Max Flow | 2*231.7L/min |
| Swing System | |
| Driving methord | Hydraulic driving |
| Reduction machanism | Planetary gear reduction |
| Swing operation brake | Wet multi-disc brakes |
| Swing Speed | 11.3rpm |
Main Configuration
| Drive unit and brake | |
| Steering control | Steering wheel control |
| Driving methord | Hydraulic drive |
| Walking motor | Axial piston pump |
| Walking speed(fast/middle/low) | 35.2/8.7/3.5km/h |
| Operating brake | Hydraulic brake |
| Parking brake | Wet multi-disc brakes |
| Tank capacity | |
| Fuel Tank Capacity | 292L |
| Hydraulic Oil Tank Capacity | 122L |
Technical Parameter

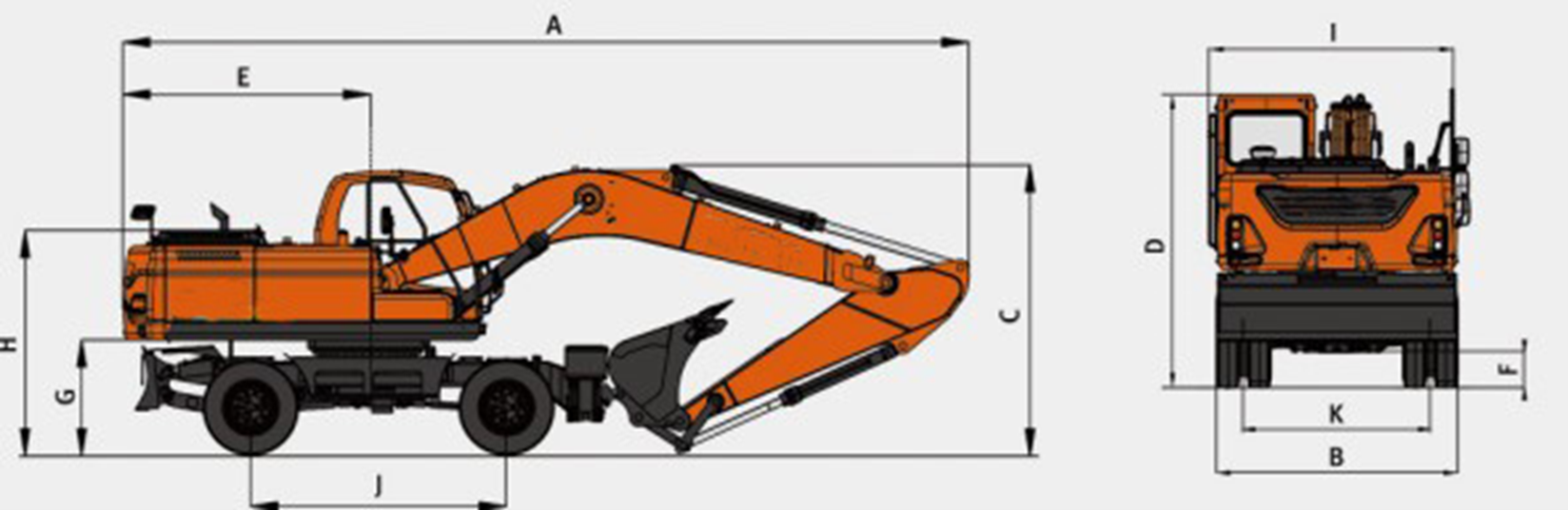

| Dimensions | ||
| A | Transport length | 9433mm |
| B | Transport width | 2424mm |
| C | Transport height | 3365mm |
| D | Total high (to the top of the cab) | 3138mm |
| E | Tail turning radius | 2727mm |
| F | Minimum ground clearance | 488mm |
| G | Counterweight ground clearance | 1260mm |
| H | Engine hood ground clearance | 2307mm |
| I | Transit width | 2522mm |
| J | Front and rear wheelbase | 2850mm |
| K | Left and right wheel track | 1914mm |

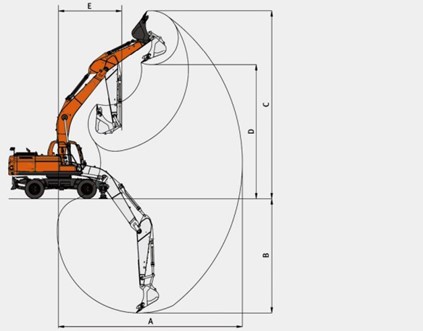

| A | Maximum digging radius | 10013mm |
| B | Digging depth | 6208mm |
| C | Digging height | 10280mm |
| D | Maximum loading height | 7345mm |
| E | Minimum turning radius | 3412mm |
