Skid Steer Loaders

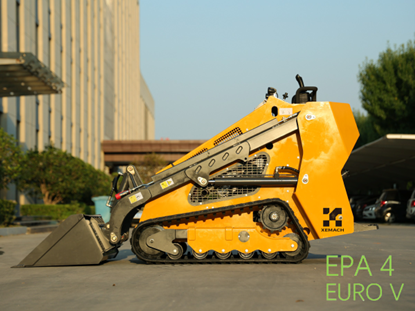

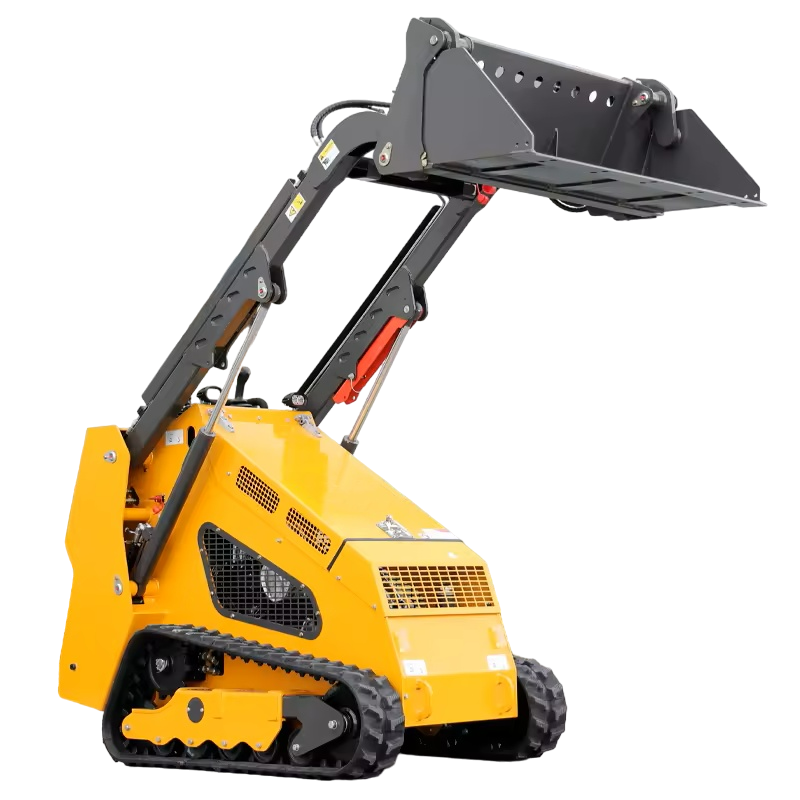

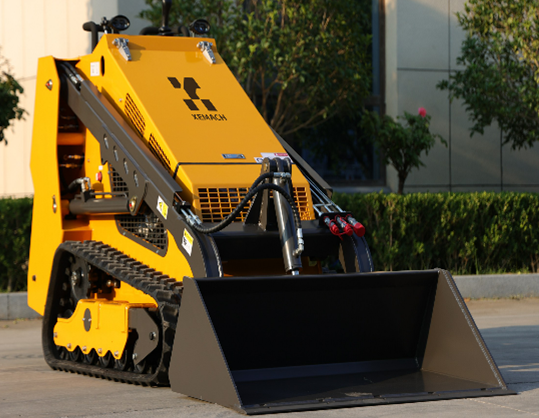

Skid Steer Loaders — XD680

Engine Model Kubota D1105 (or Perkins)

Engine Type Diesel engine, three cylinders

Emissions U.S. EPA Tier 4 and EU Stage V standards

Max. Lifting Weight 1200kg

Operating weight 1300kg

Rated Operating Weight 450kg

Features on XD680 Skid Steer Loaders

Top-tier core configuration
- Japan Kubota diesel engine, compliant with U.S. EPA Tier 4 and EU Stage V standards
- Smaller size with big power, equals to 20 labors
Fuel-efficient and cost-effective
Quick coupling as standard configurations

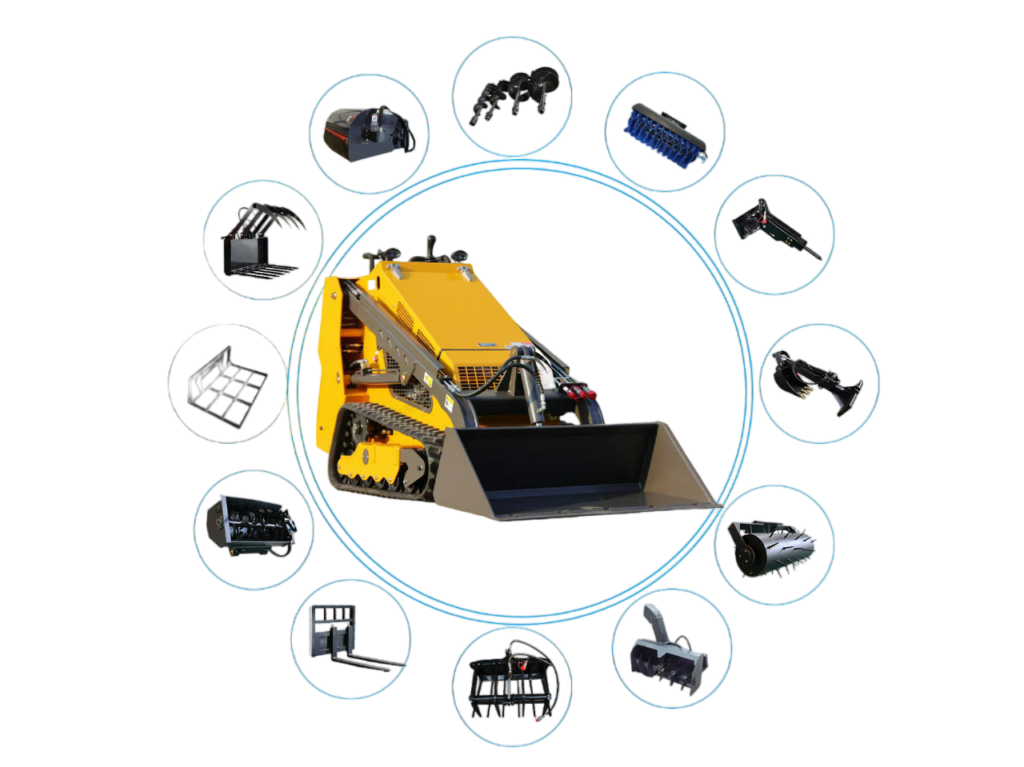

- Compatible with various attachments
Flexible operation
- Hydraulic dual-action lever and stand-up pedal with visualized dashboard
- Abrasion-resistant tires

Specifications

Engine
Engine Model	Kubota D1105 (or Perkins)
Engine Type	Diesel engine, three cylinders
Power	18.2kw/3000rpm
Emissions	U.S. EPA Tier 4 and EU Stage V standards

Weight
Max. Lifting Weight	1200kg
Operating weight	1300kg
Rated Operating Weight	450kg

Bucket
Capacity	0.2m³

Dimensions
Shipping Length	2880mm
Shipping Width	1200mm
Shipping Height	1500mm

Starting Method
Starting Method	Electric

Gradability
Gradability	30°

Travel System
Travel Speed	0-6.5km/h

Hydraulic System
Hydraulic Valve	Italia PWG
Hydraulic Motor	Denmark Danfoss

Refill Capacity
Hydraulic Oil Tank	25L
Engine Oil Tank	5.1L
Fuel Oil Tank	35L

Notes:

All dimensions are approximate and may vary depending on bucket selection

Optional Upgrade Configurations

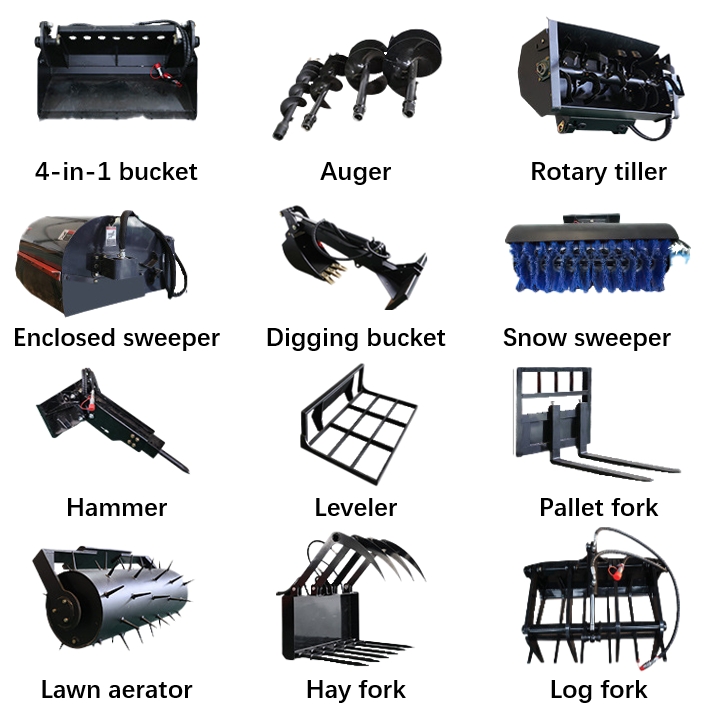

Attachments include:

After Service: One-year warranty
Free Toolbox Included
