| XD Series | XD03HD | XD05HD | XD05HDZ | ||||||

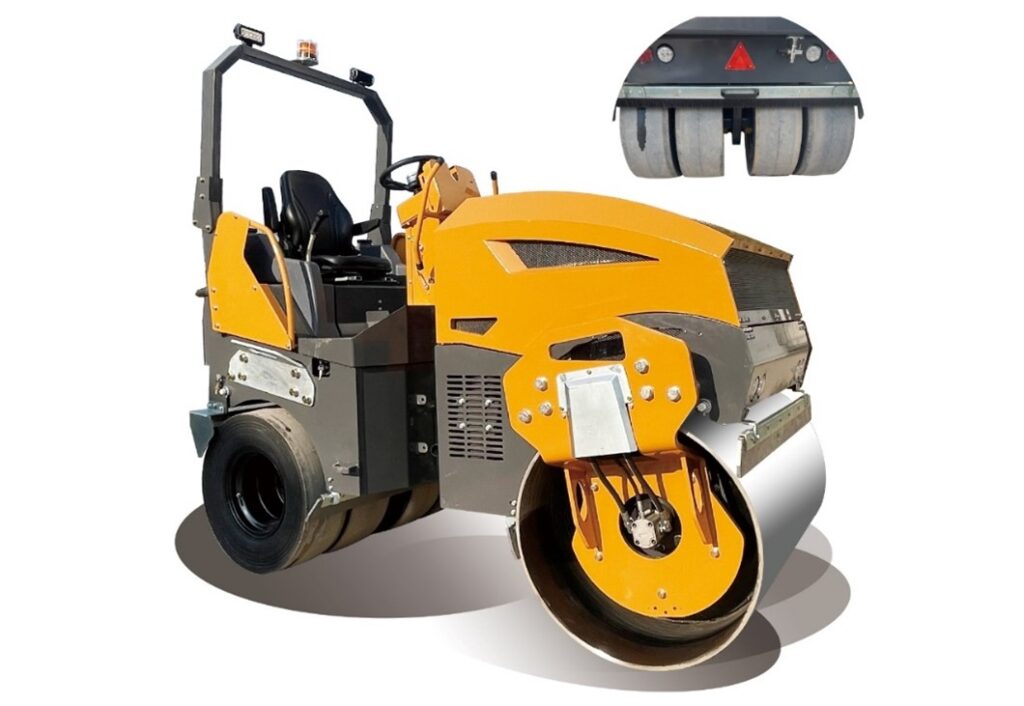

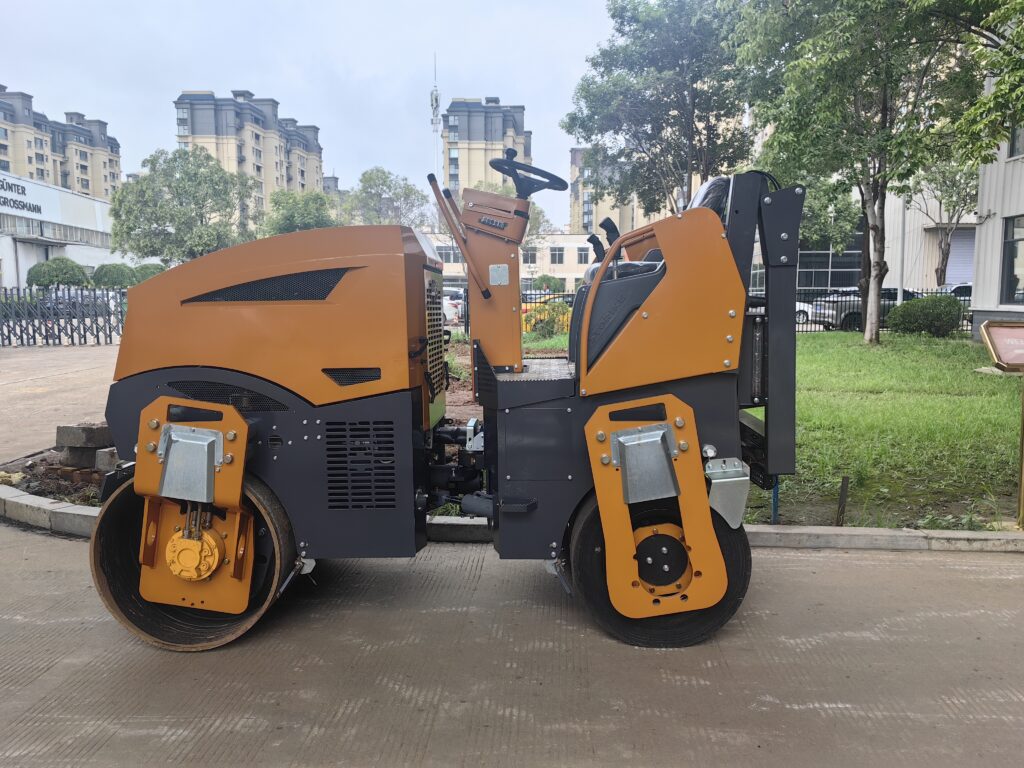

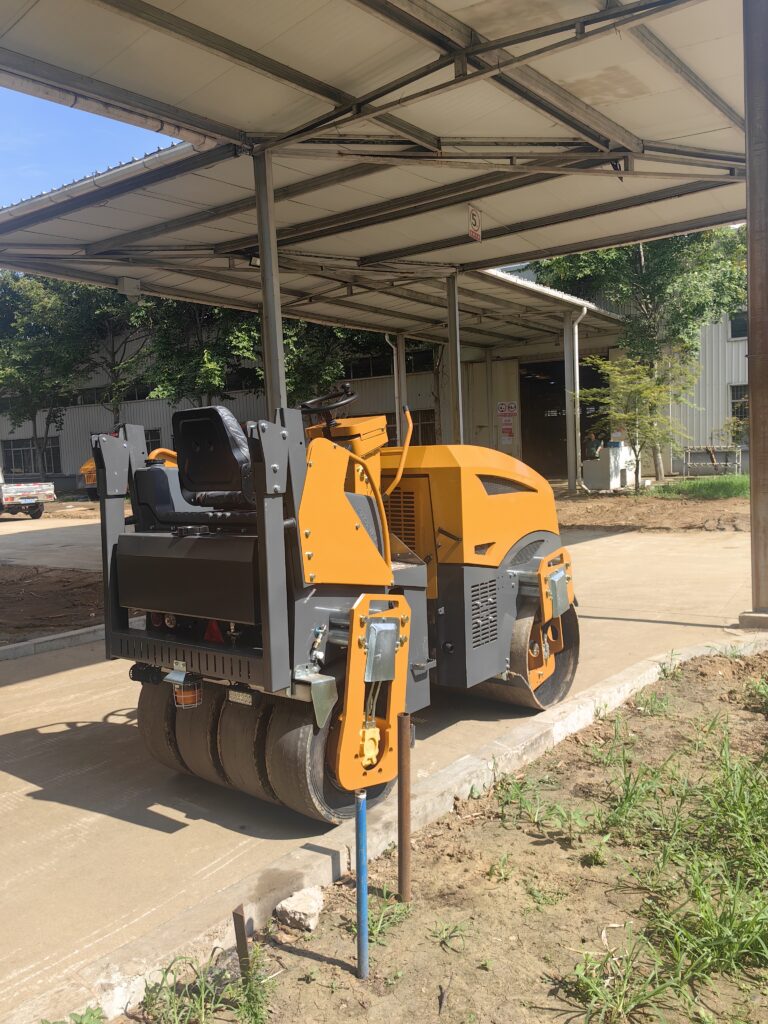

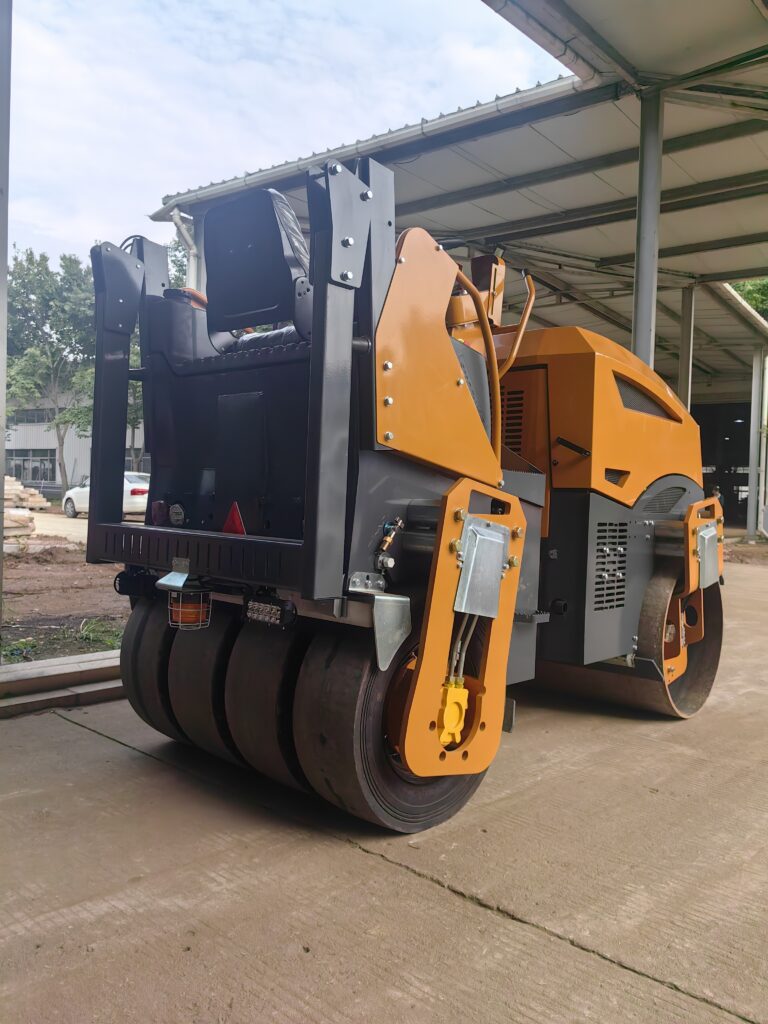

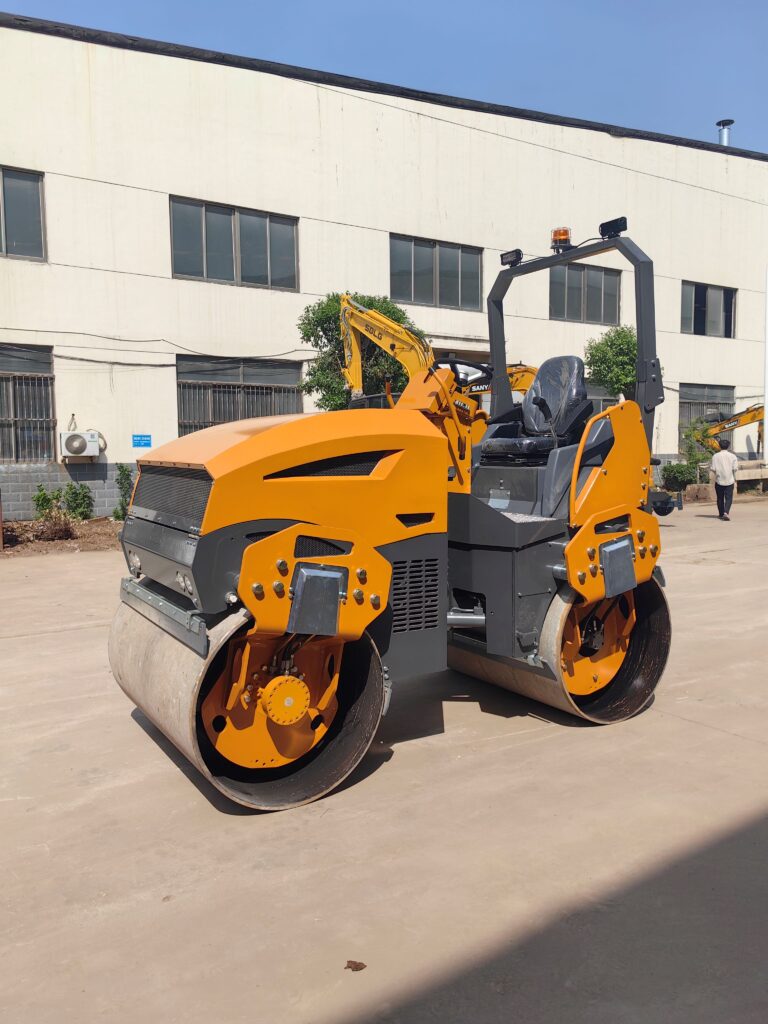

| Type | Double drum roller | Front steel rear rubber | |||||||
| Volume(mm) | 2400*1355*2630 | 2850*1580*2680 | 2905*1580*2680 | ||||||
| Operating Weight(kg) | 3000 | 5000 | 5000 | ||||||
| Drum Width*Diameter(mm) | 1200*630 | 1400 | 1400*900 | ||||||
| Width of Tyrel(r)(mm) | NA | 900 | 1340 | ||||||
| Engine Model | Changchai ZN390B | Changchai ZN490B | Yanmar 4TNV88 | Kubota V2403 | Yanmar 3TNV88 | Kubota V1505 | Changchai ZN490B | Yanmar 4TNV88 | Kubota V2403 |
| Engine Power | 28.5kW | 36kW | 34.5kW | 33.6kW | 28.1kW | 26.1kW | 36kW | 34.5kW | 33.6kW |
| Walking Speed(km/h) | 0-10 | 0-15 | 0-12 | ||||||
| Drive Mode | Variable displacement piston pump | Variable displacement piston pump, | Variable displacement piston pump, Infinitely variable speed | ||||||
| Infinitely variable speed | Infinitely variable speed | Front 1 rear 2 driving | |||||||
| Hydraulic dual drive | Hydraulic dual drive, Parallel motor | Hydraulic Steering | |||||||
| Steering | Hydraulic Steering, Swing articulated | Hydraulic Steering, Swing articulated | Hydraulic Steering, Swing Articulated | ||||||
| Exciting Force(kN) | 40 | 60 | 68 | ||||||
| Water Spraying Method | Intermittent electronic pressure water spraying | Intermittent electronic pressure water spraying | Intermittent electronic pressure water spraying(Oil-water dual pump) | ||||||
