Middle End Excavator_Large Size

  • Operation Weight: 50.5ton/53.2ton/68.1ton
  • Cummins / Isuzu turbocharged engine
  • Mining configuration with powerful operational performance
  • Extendable chassis
  • High-capacity hydraulic main pump with dual pump parallel design
  • Air conditioning

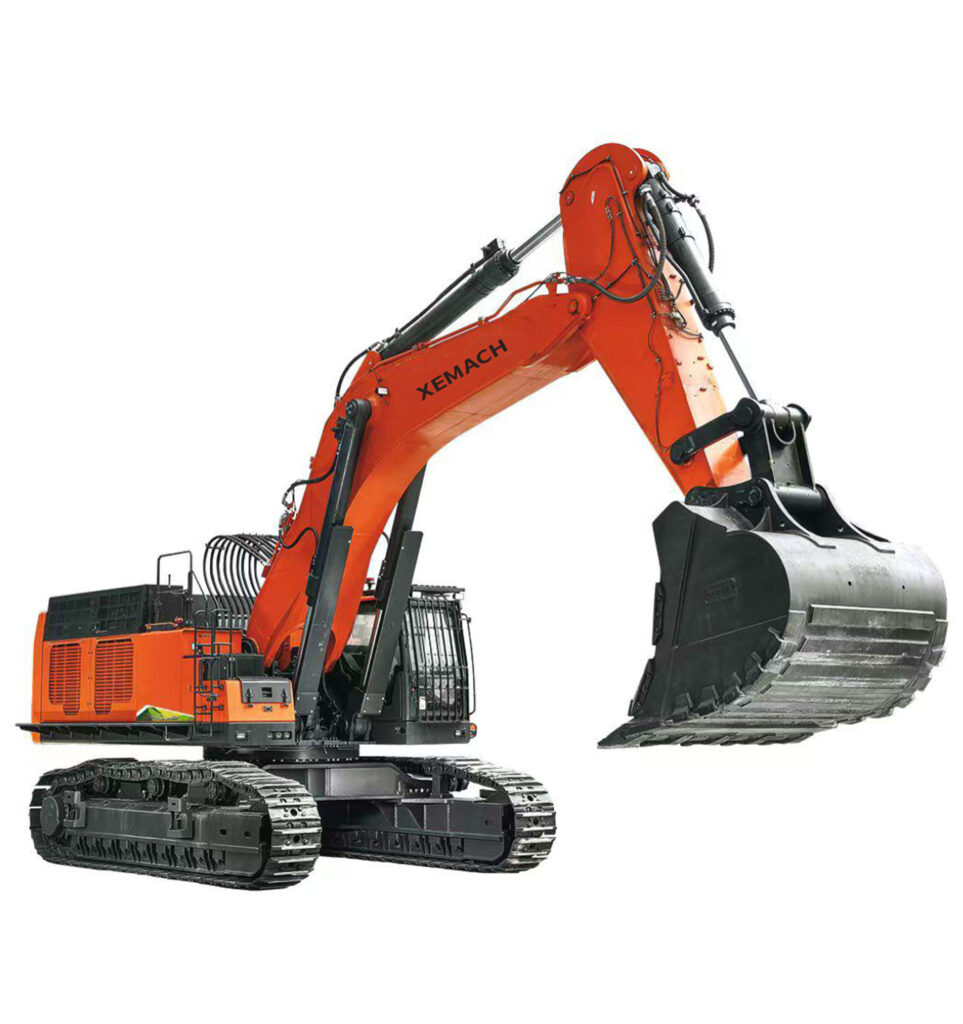

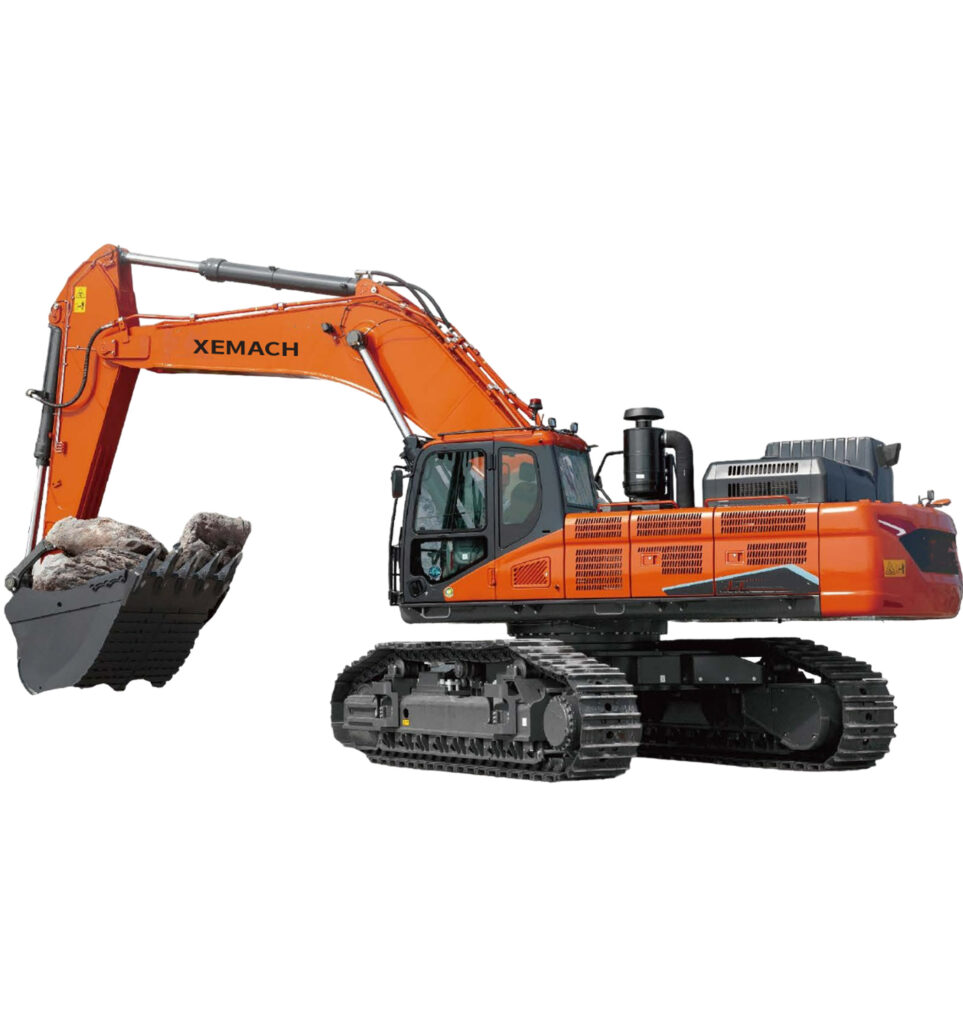

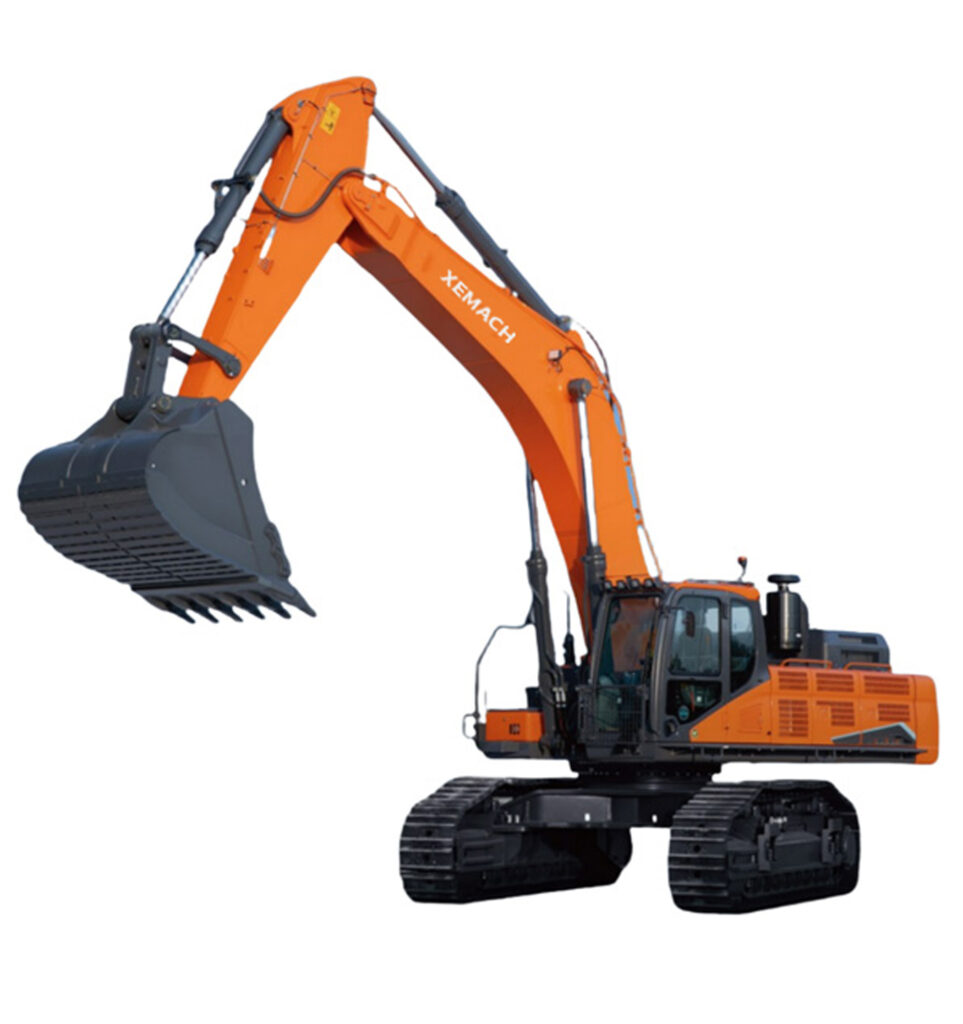

XY520 XT560 XY700
Engine
Engine Brand German Man ISUZU/Cummins ISUZU/Cummins
Engine Model DE12TIS 6WG1/QSM11 6WGI/QSI5
No. of Cylinders 6 6 6
Air Intake Turbocharged Turbocharged Turbocharged
Cylinder Bore*Valve 0
Rated Power/Speed 238KW 300kw/278kw
Emmission Standard T2 Direct Injection T3 Electronic Injection T3 Electronic Injection
Hydraulic System
Main Pump Kawasaki/Rexroth Kawasaki/Rexroth Kawasaki
Basic Parameter
Digging Bucket 3.2m3 3.2m3 3.3-4.5m3
Operation Weight 50500kg 53200kg 68100kg
Swing System
Travel Speed(High/Low) 5.3/3.1km/h 5.3/3.1 4.1/3.3km/h
Swing Speed 10.3rpm 10.6rpm 8rpm
Max. Digging Force
Bucket Digging Force 292kN 310kN 27.1ton
Stick Digging Force 217kN 230kN 31.7ton
Dimension XY520 XT560 XY700
Transportation height(to the top of the boom) 3610 4140 4885
Transportation height(to the top of the hose) 3705 4180 4990
Transport Length 12110 11530 12145
Transport Width 3690 3690 3900
Counterweight Clearance 1425 1425 1430
Overall Height(to the cab) 3370 3370 3420
Upper Structure Width 2990 2990 3200
Carbin Height Above the House 850 850 1900
Cab Width 1010 1010 1010
Tumbler Distance 4475 4475 4600
Overall Track Length 5505 5505 5695
Undercarriage Width 2990/3490 2990/3490 3340/3900
Track Width 600 600 600
Track Height 1190 1190 1230
Min. Ground Clearance 725 725 790
Max. Digging Reach 12125 11069 11432
Max. Digging Reach(Ground) 11865 10782 11137
Max. Digging Depth 7790 6991 6975
Max. Loading Height 7865 6532 7145
Min. Loading Height 3130 2695 3205
Max. Digging Height 11050 9926 10710
Max. Bucket Pin Height 9690 8620 9190
Max. Vertical Wall Depth 4370 5082 3215
Max. Vertical Digging Radius 9970 8002 9840
Max. Digging Depth(8′ level) 7635 6910 6830
Min. Radius 8′ level 3895 3550 3720
Min. Digging Reach 653 110
Min. Swing Radius 5210 4715 5240
Bucket Extension Angle 189 186.2 178
Tail Swing Radius 3800 3800 3960
