| Basic |
Operating weight |
XMG713H |
XMG717H |
XMG719H |
XMG722H |
XMG724H |
XMG732T |
| 12000KG |
14500KG |
15600KG |
16100KG |
19700KG |
23000KG |

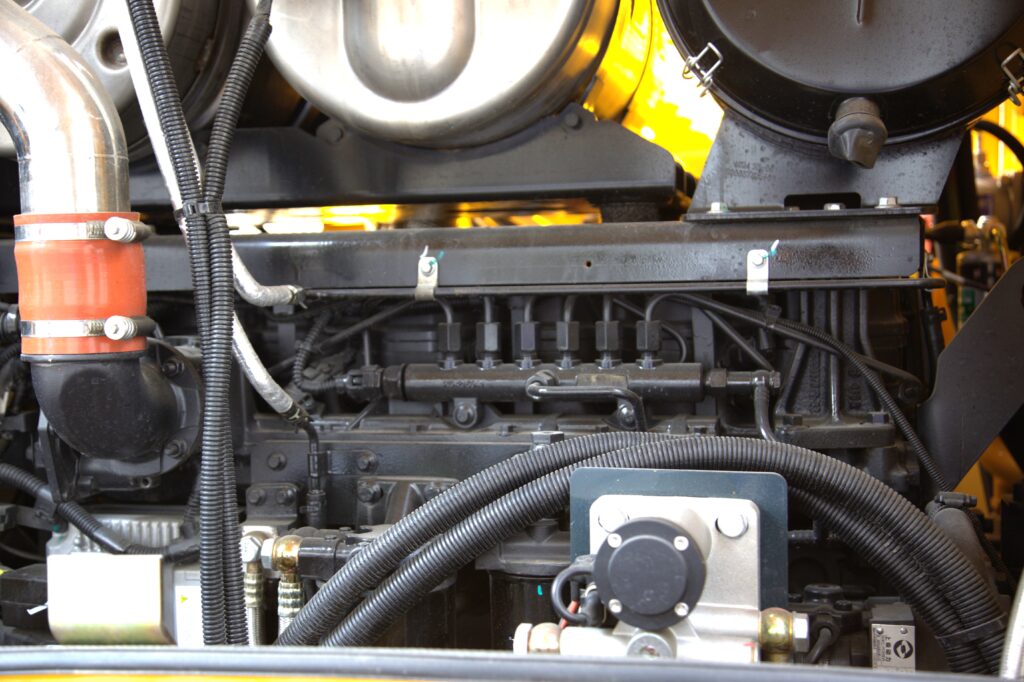

| Engine |
Model |
Cummins 6BT5.9 |
Cummins 6BT5.9 |
Cummins 6BT5.9 |
Shangchai SC11CB220G2B1 |
Cummins 6CTA8.3 |
Cummins QSM11-C330 |
| Type |
Dircet injection/turbocharged/water cooling |
Dircet injection/turbocharged/water cooling |
Dircet injection/turbocharged/water cooling |
Dircet injection/turbocharged/water cooling |
Dircet injection/turbocharged/water cooling |
EFI/turbocharged/air to air cooling |
| Rated power |
97kW |
132kW |
142kW |
162kW |
179kW |
246kW |
| Rated speed |
2200rpm |
2200rpm |
2200rpm |
2200rpm |
2200rpm |
2100rpm |
| Transmission System |
Forward speed |
6.9/10.7/17.3/26/37.8/53.4 |
6.5/11.4/14.6/24.8/30/49.2 |
6.5/11.4/14.6/24.8/30/49.2 |
6.9/11.8/15.5/26.2/32.6/50.9 |
5.0/8.6/11.3/19.3/24.3/38.8 |
5.8/8.6/13.3/20.3/29/43 |
| Reverse speed |
6.9/17.3/37.8 |
6.9/14.6/30 |
6.9/14.6/30 |
6.9/15.5/32.6 |
5.0/11.3/24.3 |
5.5/13.0/29 |
| Hydraulic System |
System pressure |
17.5mpa |
17.5mpa |
17.5mpa |
17.5mpa |
17.5mpa |
25mpa |
| Flow rate at engine rated speed |
99L/min |
99L/min |
99L/min |
99L/min |
140L/min |
Dual-handle electronically controlled load-sensing system |
| Steering System |
Front steer and articulated |
| Max. turning range |
±49° |
±49° |
±49° |
±49° |
±49° |
±49° |
| Frame articulation |
±26° |
±26° |
±26° |
±26° |
±26° |
±25° |
| Min. turning radius |
6600mm |
7300mm |
7300mm |
7400mm |
8300mm |
9000mm |
| System pressure |
16mpa |
16mpa |
16mpa |
16mpa |
16mpa |
16mpa |
| Flow rate at engine rated speed |
55L/min |
55L/min |
55L/min |
55L/min |
70L/min |
Full hydraulic front wheel steering/articulated steering |
| Axles |
Front axle |
Ground clearance 610mm / oscillation angle±16° |
Ground clearance 610mm / oscillation angle±16° |
Ground clearance 610mm / oscillation angle±16° |
Ground clearance 610mm / oscillation angle±16° |
Ground clearance 610mm / oscillation angle±16° |
Oscillation angle±15° |
| Wheel lean angle |
±17° |
±17° |
±17° |
±17° |
±17° |
±17° |
| Rear axle |
Full-floating rear axle with no-spin differential |
Full-floating rear axle with no-spin differential |
Full-floating rear axle with no-spin differential |
Full-floating rear axle with no-spin differential |
Full-floating rear axle with no-spin differential |
Full-floating rear axle with no-spin differential |
| Tandem Drive |
Tandem oscillation |
13° forward and reverse |
13° forward and reverse |
13° forward and reverse |
13° forward and reverse |
13° forward and reverse |
13° forward and reverse |
| Final driving |
Spiral bevel gear, single stage reduction |
Spiral bevel gear, single stage reduction |
Spiral bevel gear, single stage reduction |
Spiral bevel gear, single stage reduction |
Spiral bevel gear, single stage reduction |
Spiral bevel gear, single stage reduction |
| Tandem drive |
Double row roller-chains |
Double row roller-chains |
Double row roller-chains |
Double row roller-chains |
Double row roller-chains |
Chains |
| Moldboard |
Dimensions |
3658*580*16mm |
3658*580*16mm |
4268*580*16mm |
4320*580*16mm |
4420*610*16mm |
4620*695*25mm |
| Blade Range |
Moldboard side shift(left/right) |
815mm/815mm |
815mm/815mm |
965mm/965mm |
965mm/965mm |
965mm/965mm |
555mm/980mm |
| Max. shoulder reach outside rear tyres |
1916mm/1886mm |
2000mm/2000m |
2346mm/2341mm |
2372mm/2367mm |
2155mm/2150mm |
1950mm/2260mm |
| Max. lift above ground |
410mm |
450mm |
450mm |
450mm |
480mm |
515mm |
| Max. grading depth |
560mm |
535mm |
535mm |
535mm |
500mm |
735mm |
| Max. blade angle |
90° |
90° |
90° |
90° |
90° |
65° |
| Blade tip angle |
29°-77° |
29°-77° |
29°-77° |
29°-77° |
29°-77° |
23°-73° |
