| Engine |
Yunnei 4105 Turbocharging |
| Rated Power |
85KW |
| Gearbox |
JBJ-320 Power Shift Gearbox |
| Gearshift |
4 Forward + 4 Back |

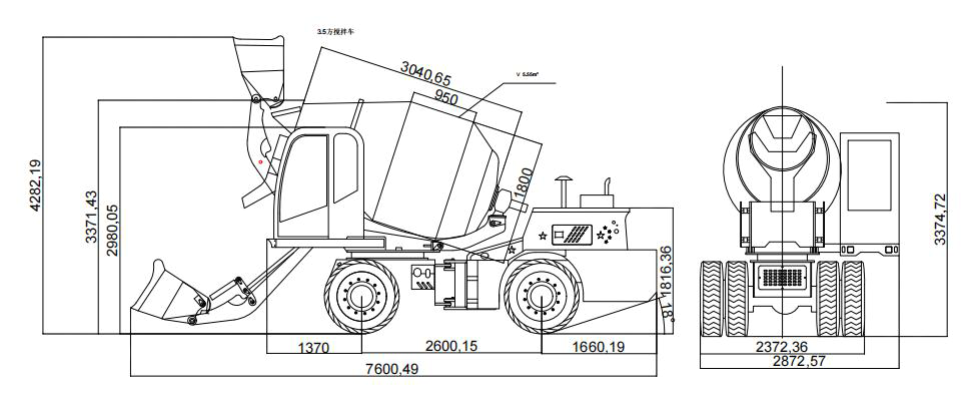

| Overall Dimensions(L*W*H) |
7600 X 2872 X 3374 |
| Wheel Base(mm) |
2450 |
| Curb Weight(Kg) |
8000 |
| Drive Form |
4 X 4 |
| Maximum Speed(Km/h) |
35 |
| Maximum Gradeability |
35 |
| Minimum Ground Clearance(mm) |
290 |
|
|
| Fuel Tank(L) |
750 |
| Hydraulic Oil Tank(L) |
120 |
| Engine Oil Capacity (L) |
13 |
|
|
| Water Tank(L) |
750 |
| Water Supply |
Time Relay |
|
|
| Reducer |
5F-300B |
| Motor |
A2FM63 |
|
|
| Geometrical drum volume |
5.55m3 |
| Drum rotation speed |
2-rpm |
| Concrete produced as |
3.5m3/drum |
